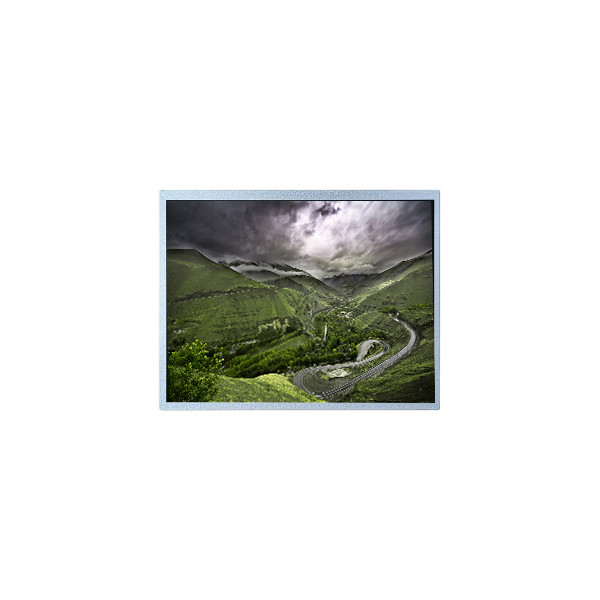

Name: FG1004D0DSSWMG01 10.4 inch 1024*768 60Hz lcd Display Parts
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG1004D0DSSWMG01
Availability: InStock

Brand Name:	Data Image
Model Number:	FG1004D0DSSWMG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG1004D0DSSWMG01

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

210.4(W)×157.8(H) Mm

Used For:

Industrial

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

FG1004D0DSSWMG01 10.4 inch 1024*768 60Hz lcd Display Parts

FG1004D0DSSWMG01 LCD Panel Product details :

Brand	Data Image
Model P/N	FG1004D0DSSWMG01
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	210.4(W)×157.8(H) mm
Bezel Opening	-
Outline Size	225.5(W)×176.3(H)×9.2(D) mm
Surface	Antiglare
Brightness	500 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Display Mode	Normally Black, Transmissive
Best View on	Symmetry
Response Time	14/11 (Typ.)(Tr/Td)
Display Colors	16.2M 55%NTSC
Lamp Type	WLED, 50K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	-
Application	Industrial
Signal Interface	LVDS (1 ch, 8-bit), 30 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
FG1004D0DSSWMG01 10.4 inch 1024*768 60Hz lcd Display Parts

FG1004D0DSSWMG01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG1004D0DSSWMG01 LCD Panel Shipping and Package :

FG1004D0DSSWMG01 10.4 inch 1024*768 60Hz lcd Display Parts 0

FG1004D0DSSWMG01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG1004D0DSSWMG01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG1004D0DSSWMG01 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of FG1004D0DSSWMG01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of FG1004D0DSSWMG01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of FG1004D0DSSWMG01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
