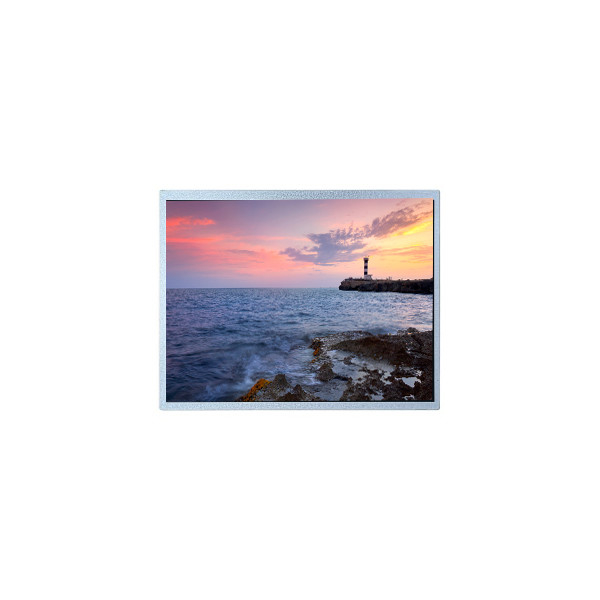

Name: original 10.1 inch FG1001L0DSSWMG01 1280*800 LVDS lcd Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG1001L0DSSWMG01
Availability: InStock

Brand Name:	Data Image
Model Number:	FG1001L0DSSWMG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG1001L0DSSWMG01

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×800, WXGA 149PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

216.96(W)×135.6(H) Mm

Used For:

Industrial

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

original 10.1 inch FG1001L0DSSWMG01 1280*800 LVDS lcd Display

FG1001L0DSSWMG01 LCD Panel Product details :

Brand	Data Image
Model P/N	FG1001L0DSSWMG01
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 149PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.96(W)×135.6(H) mm
Bezel Opening	-
Outline Size	229.46(W)×149.1(H)×7.16(D) mm
Treatment	-
Luminance	500 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	10/15 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	Normally Black, Transmissive
Color Depth	16.7M
Backlight	WLED, 50K hours, No Driver
Mass	TBD
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit), 40 pinsFPC
Voltage Supply	2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
original 10.1 inch FG1001L0DSSWMG01 1280*800 LVDS lcd Display

FG1001L0DSSWMG01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG1001L0DSSWMG01 LCD Panel Shipping and Package :

original 10.1 inch FG1001L0DSSWMG01 1280*800 LVDS lcd Display 0

FG1001L0DSSWMG01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG1001L0DSSWMG01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG1001L0DSSWMG01 LCD Panel FAQ :

Q: Can I pay my order of FG1001L0DSSWMG01 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of FG1001L0DSSWMG01 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of FG1001L0DSSWMG01 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .
