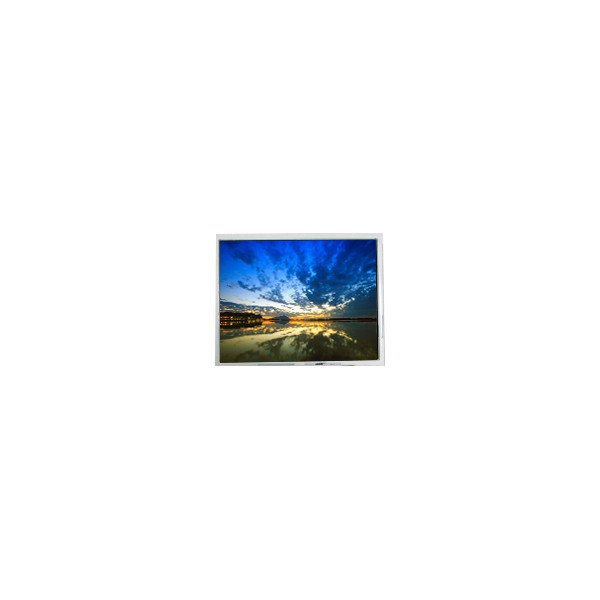

Name: 10.1 inch FG1001F0DSSWNGL1 lcd Display for Outdoor High Brightness
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG1001F0DSSWNGL1
Availability: InStock

Brand Name:	Data Image
Model Number:	FG1001F0DSSWNGL1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG1001F0DSSWNGL1

Diagonal Size:

10.1"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1280(RGB)×800, WXGA 149PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

216.96(W)×135.6(H) Mm

Used For:

Industrial、Outdoor High Brightness

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

10.1 inch FG1001F0DSSWNGL1 lcd Display for Outdoor High Brightness

FG1001F0DSSWNGL1 LCD Panel Product details :

Brand	Data Image
Model P/N	FG1001F0DSSWNGL1
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 149PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.96(W)×135.6(H) mm
Bezel Opening	219.96(W)×138.9(H) mm
Outline Dim.	229.5(H)×152.5(V)×7.05(D) mm
Treatment	-
Luminance	780 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	10/15 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	Normally Black, Transmissive
Support Color	16.7M
Light Source	WLED, 30K hours, W/O Driver
Weight	297g (Typ.)
Designed For	Industrial,Outdoor High Brightness
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit), 40 pinsFPC
Power Supply	2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
10.1 inch FG1001F0DSSWNGL1 lcd Display for Outdoor High Brightness

FG1001F0DSSWNGL1 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG1001F0DSSWNGL1 LCD Panel Shipping and Package :

10.1 inch FG1001F0DSSWNGL1 lcd Display for Outdoor High Brightness 0

FG1001F0DSSWNGL1 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG1001F0DSSWNGL1 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG1001F0DSSWNGL1 LCD Panel FAQ :

Q: Can You declare my order of FG1001F0DSSWNGL1 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of FG1001F0DSSWNGL1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of FG1001F0DSSWNGL1 ?

A: Of course!If you make a large order, we will give you a discount.
