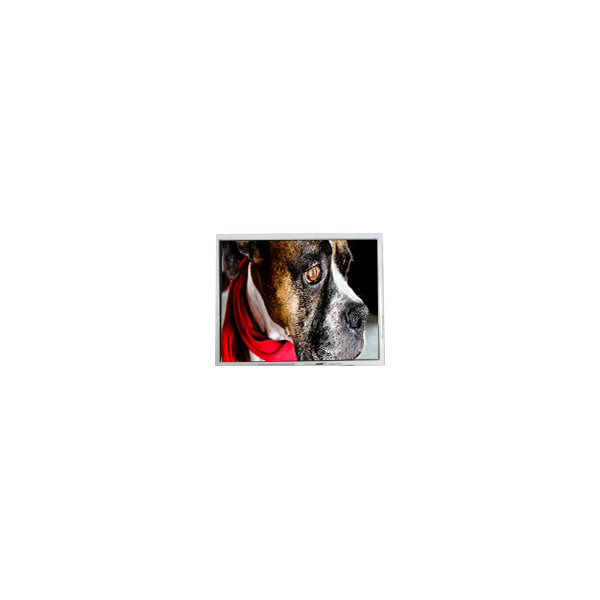

Name: FG0700GGDSSWBGL1 7.0 inch 800*480 1000 cd/m2 LCD Monitor
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG0700GGDSSWBGL1
Availability: InStock

Brand Name:	Data Image
Model Number:	FG0700GGDSSWBGL1
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG0700GGDSSWBGL1

Diagonal Size:

7.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Used For:

Industrial、Outdoor High Brightness

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

FG0700GGDSSWBGL1 7.0 inch 800*480 1000 cd/m2 LCD Monitor

FG0700GGDSSWBGL1 LCD Panel Product details :

Brand	Data Image
Model P/N	FG0700GGDSSWBGL1
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	154.4(W)×93.44(H) mm
Outline(mm)	169.8 × 106× 13.5 (H×V×D)
Treatment	-
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Response	5/15 (Typ.)(Tr/Td) ms
Good View at	-
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 49%NTSC
Backlight	WLED, 50K hours, With LED Driver
Mass	232g (Typ.)
Used for	Industrial,Outdoor High Brightness
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit), 20 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -35 ~ 80 °C Operating Temp.: -35 ~ 70 °C
FG0700GGDSSWBGL1 7.0 inch 800*480 1000 cd/m2 LCD Monitor

FG0700GGDSSWBGL1 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG0700GGDSSWBGL1 LCD Panel Shipping and Package :

FG0700GGDSSWBGL1 7.0 inch 800*480 1000 cd/m2 LCD Monitor 0

FG0700GGDSSWBGL1 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG0700GGDSSWBGL1 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG0700GGDSSWBGL1 LCD Panel FAQ :

Q: Can You declare my order of FG0700GGDSSWBGL1 a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of FG0700GGDSSWBGL1 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of FG0700GGDSSWBGL1 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of FG0700GGDSSWBGL1 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
