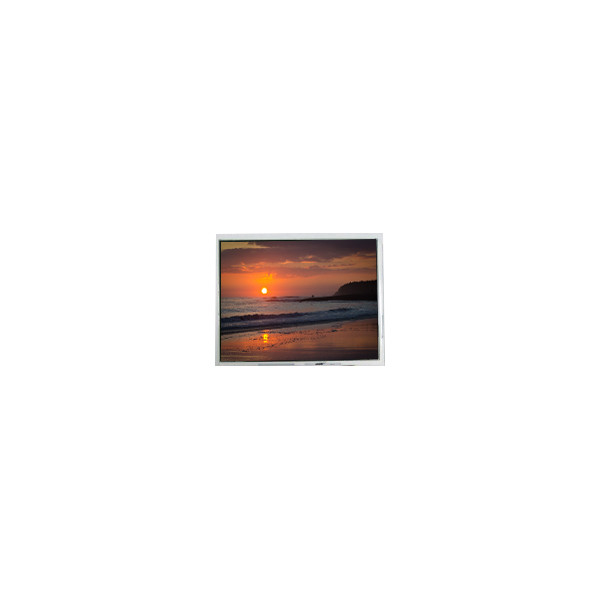

in stock 7.0 inch 800*480 FG0700GCDSSWBGL1 LCD Module Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Data Image |
| Model Number: | FG0700GCDSSWBGL1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | FG0700GCDSSWBGL1 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Used For: | Outdoor High Brightness、Automotive Display | Touchscreen: | Without |
Product Description
in stock 7.0 inch 800*480 FG0700GCDSSWBGL1 LCD Module Screen
FG0700GCDSSWBGL1 LCD Panel Product details :
| Brand | Data Image |
| Model P/N | FG0700GCDSSWBGL1 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.4(W)×93.44(H) mm |
| Outline(mm) | 169.8 × 106 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/50 (Typ.)(CR≥10) |
| Response | 5/15 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 46%NTSC |
| Backlight | 4S2PWLED, 30K hours, No Driver |
| Mass | 205g (Typ.) |
| Used for | Outdoor High Brightness,Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 8-bit), 60 pins FPC |
| Voltage Supply | 3.3/3.3/12/18.3/-6V (Typ.)(VCC/VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| in stock 7.0 inch 800*480 FG0700GCDSSWBGL1 LCD Module Screen | |
FG0700GCDSSWBGL1 LCD Panel Shipping and Package :
FG0700GCDSSWBGL1 LCD Panel FAQ :
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel FG0700GCDSSWBGL1 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
