Name: FG0700G3DSSWBGL4 7.0 inch LCD Screen Module with Industrial
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG0700G3DSSWBGL4
Availability: InStock

Brand Name:	Data Image
Model Number:	FG0700G3DSSWBGL4
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG0700G3DSSWBGL4

Diagonal Size:

7.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Used For:

Industrial、Automotive Display

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

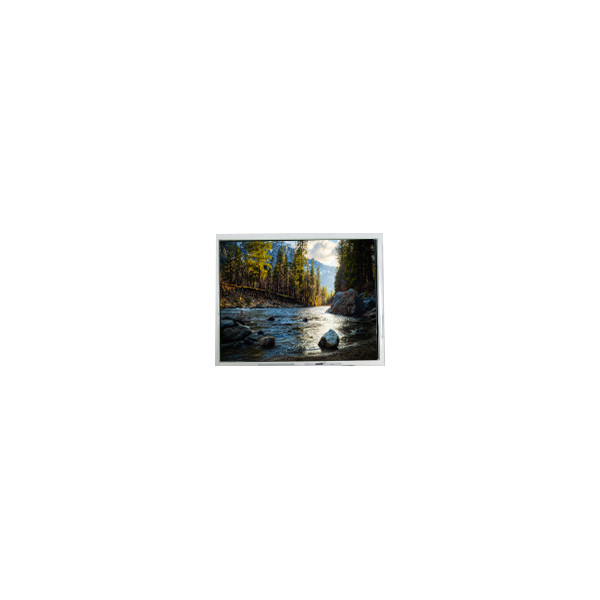

FG0700G3DSSWBGL4 7.0 inch LCD Screen Module with Industrial

FG0700G3DSSWBGL4 LCD Panel Product details :

Brand	Data Image
Model P/N	FG0700G3DSSWBGL4
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	-
Outline Dim.	165(H)×106.4(V)×3.7(D) mm
Treatment	-
Luminance	900 cd/m² (Typ.)
Contrast Ratio	600:1 (Typ.) (TM)
View Direction	-
Response Time	5/15 (Typ.)(Tr/Td)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M
Light Source	WLED [3S10P], 20K hours, W/O Driver
Weight	132g (Typ.)
Designed For	Industrial,Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 8-bit), 40 pinsFPC
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
FG0700G3DSSWBGL4 7.0 inch LCD Screen Module with Industrial

FG0700G3DSSWBGL4 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG0700G3DSSWBGL4 LCD Panel Shipping and Package :

FG0700G3DSSWBGL4 7.0 inch LCD Screen Module with Industrial 0

FG0700G3DSSWBGL4 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG0700G3DSSWBGL4 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG0700G3DSSWBGL4 LCD Panel FAQ :

Q:If I place order now,when will you ship the goods of FG0700G3DSSWBGL4 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q:Do you accept sample orders of FG0700G3DSSWBGL4 ?

A:Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods FG0700G3DSSWBGL4 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
