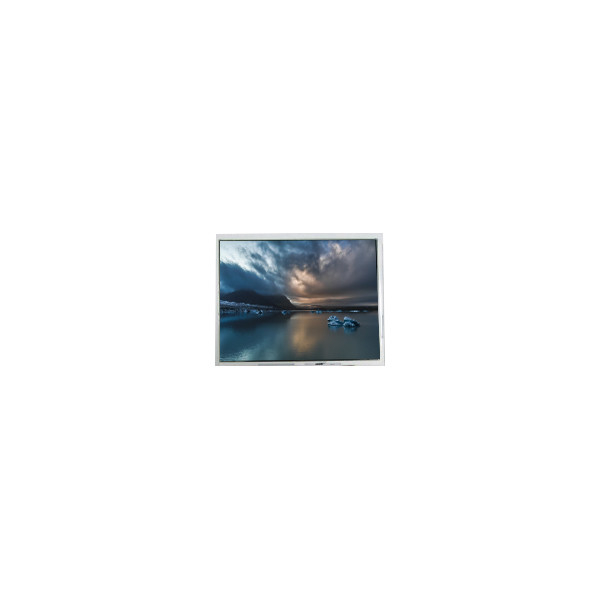

7.0 inch FG0700G3DSSWAGT1 LCD Screen for Digital Photo Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | Data Image |
| Model Number: | FG0700G3DSSWAGT1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | FG0700G3DSSWAGT1 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Used For: | Digital Photo Frame、Portable DVD Player | Touchscreen: | 4-wire Resistive Touch |
Product Description
7.0 inch FG0700G3DSSWAGT1 LCD Screen for Digital Photo Frame
FG0700G3DSSWAGT1 LCD Panel Product details :
| Brand | Data Image |
| Model P/N | FG0700G3DSSWAGT1 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.9(W)×93.9(H) mm |
| Outline Dim. | 165(H)×106.4(V)×3.6(D)mm |
| Treatment | Hard coating (3H) |
| Luminance | 280 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 46%NTSC |
| Light Source | WLED [3S9P], 30K hours, W/O Driver |
| Weight | 182g |
| Designed For | Digital Photo Frame,Portable DVD Player |
| Frame Rate | 60Hz |
| Touch Panel | 4-wire Resistive Touch |
| Interface Type | Parallel RGB (1 ch, 8-bit), 40 pinsFPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| 7.0 inch FG0700G3DSSWAGT1 LCD Screen for Digital Photo Frame | |
FG0700G3DSSWAGT1 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
FG0700G3DSSWAGT1 LCD Panel Shipping and Package :
FG0700G3DSSWAGT1 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
FG0700G3DSSWAGT1 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
FG0700G3DSSWAGT1 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods FG0700G3DSSWAGT1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q:If I place order now,when will you ship the goods of FG0700G3DSSWAGT1 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q:Do you accept sample orders of FG0700G3DSSWAGT1 ?
A:Of course!sample order is welcome !
Want to Know more details about this product
