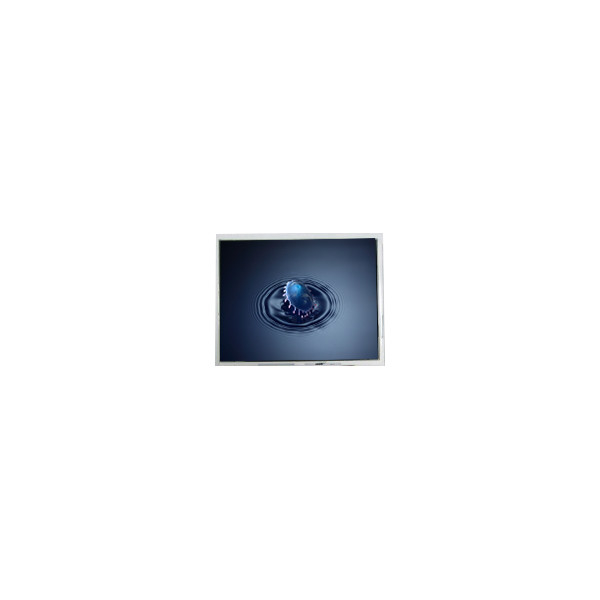

Name: in stock 800*480 FG0700A0DSSWBG01 7.0 inch LCD Screen Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG0700A0DSSWBG01
Availability: InStock

Brand Name:	Data Image
Model Number:	FG0700A0DSSWBG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG0700A0DSSWBG01

Diagonal Size:

7.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Used For:

Automotive Display

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

in stock 800*480 FG0700A0DSSWBG01 7.0 inch LCD Screen Panel

FG0700A0DSSWBG01 LCD Panel Product details :

Brand	Data Image
Model P/N	FG0700A0DSSWBG01
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	154.9(W)×93.9(H) mm
Outline Dim.	165(W)×104(H)×5.7(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	320 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	20 (Max.)(Tr+Td)
Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K
Light Source	WLED, 20K hours, With LED Driver
Weight	TBD
Designed For	Automotive Display
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit), 40 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
in stock 800*480 FG0700A0DSSWBG01 7.0 inch LCD Screen Panel

FG0700A0DSSWBG01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG0700A0DSSWBG01 LCD Panel Shipping and Package :

in stock 800*480 FG0700A0DSSWBG01 7.0 inch LCD Screen Panel 0

FG0700A0DSSWBG01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG0700A0DSSWBG01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG0700A0DSSWBG01 LCD Panel FAQ :

Q: How long will I receive my goods FG0700A0DSSWBG01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q:If I place order now,when will you ship the goods of FG0700A0DSSWBG01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q:Do you accept sample orders of FG0700A0DSSWBG01 ?

A:Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .
