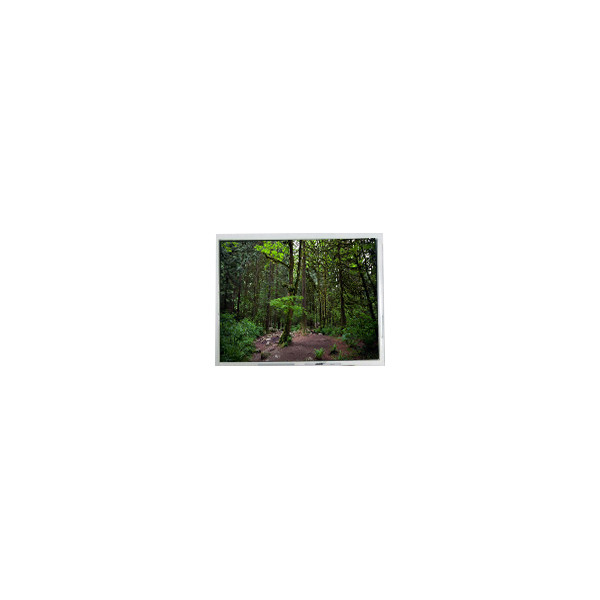

Name: High Quality 800*480 FG0500E2DSSWBG01 5.0 inch LCD Screen
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG0500E2DSSWBG01
Availability: InStock

Brand Name:	Data Image
Model Number:	FG0500E2DSSWBG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG0500E2DSSWBG01

Diagonal Size:

5.0"

Panel Type:

LTPS TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 188PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

108(W)×64.8(H) Mm

Used For:

Industrial

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

High Quality 800*480 FG0500E2DSSWBG01 5.0 inch LCD Screen

FG0500E2DSSWBG01 LCD Panel Product details :

Brand	Data Image
Model P/N	FG0500E2DSSWBG01
Diagonal Size	5.0"
Panel Type	LTPS TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 188PPI
Pixel Format	RGB Vertical Stripe
Active Area	108(W)×64.8(H) mm
Bezel Opening	110(W)×66.8(H) mm
Outline (mm)	118.4×77.45 (H×V×D)
Treatment	Antiglare
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	700 : 1 (Typ.) (TM)
Viewing Angle	70/70/70/70 (Typ.)(CR≥10)
Response	10/15 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K
Backlight	WLED, 30K hours, No Driver
Mass	76g (Typ.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6-bit), FPC50 pins
Voltage Supply	3.3/10.4/16/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C
High Quality 800*480 FG0500E2DSSWBG01 5.0 inch LCD Screen

FG0500E2DSSWBG01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG0500E2DSSWBG01 LCD Panel Shipping and Package :

High Quality 800*480 FG0500E2DSSWBG01 5.0 inch LCD Screen 0

FG0500E2DSSWBG01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG0500E2DSSWBG01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG0500E2DSSWBG01 LCD Panel FAQ :

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
