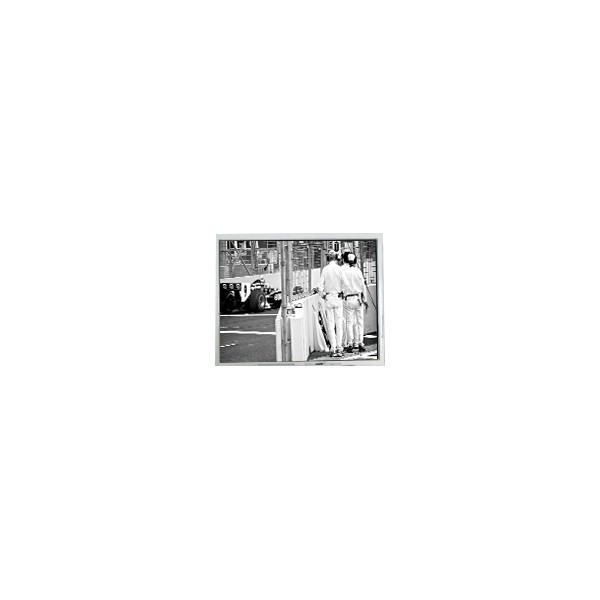

Name: original 480*800 4.3 inch FG0403J0DSSWMG01 LCD Screen Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: FG0403J0DSSWMG01
Availability: InStock

Brand Name:	Data Image
Model Number:	FG0403J0DSSWMG01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

FG0403J0DSSWMG01

Diagonal Size:

4.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

480(RGB)×800, WVGA 218PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

55.8(W)×93(H) Mm

Used For:

Mobile Phone

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

original 480*800 4.3 inch FG0403J0DSSWMG01 LCD Screen Panel

FG0403J0DSSWMG01 LCD Panel Product details :

Brand	Data Image
Model P/N	FG0403J0DSSWMG01
Diagonal Size	4.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	480(RGB)×800, WVGA 218PPI
Pixel Format	RGB Vertical Stripe
Active Area	55.8(W)×93(H) mm
Bezel Opening	-
Outline Size	62.54(W)×107.6(H)×2.9(D) mm
Treatment	-
Luminance	400 cd/m² (Typ.)
Contrast Ratio	-
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	25 (Typ.)(Tr+Td) ms
Good View at	Symmetry
Work Mode	Normally Black, Transmissive
Color Depth	262K 55%NTSC
Backlight	8S1PWLED, 15K hours, No Driver
Mass	TBD
Used for	Mobile Phone
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6-bit) + SPIFPC
Voltage Supply	3.3/3.3 (Max.)(VDD/VDDI)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
original 480*800 4.3 inch FG0403J0DSSWMG01 LCD Screen Panel

FG0403J0DSSWMG01 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

FG0403J0DSSWMG01 LCD Panel Shipping and Package :

original 480*800 4.3 inch FG0403J0DSSWMG01 LCD Screen Panel 0

FG0403J0DSSWMG01 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

FG0403J0DSSWMG01 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

FG0403J0DSSWMG01 LCD Panel FAQ :

Q: How long will I receive my goods FG0403J0DSSWMG01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How to make payment of FG0403J0DSSWMG01 ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of FG0403J0DSSWMG01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity of FG0403J0DSSWMG01 ?

A: Of course!If you make a large order, we will give you a discount.
