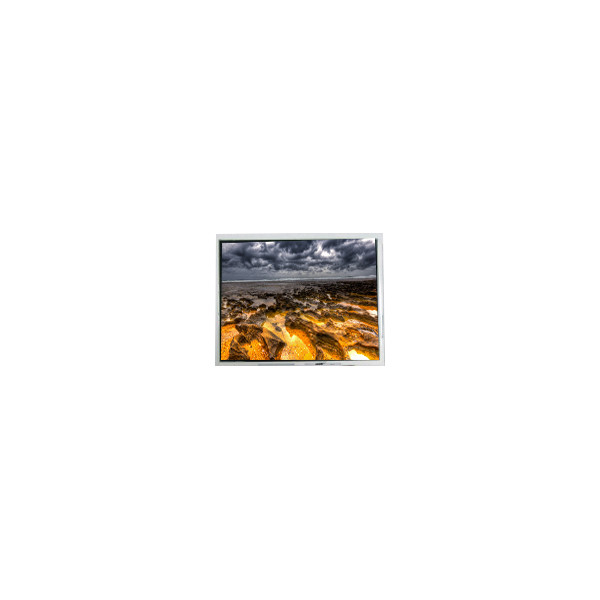

3.5 inch RB431Z 480*800 LCD screen Module FOR Mobile Phone
Product Details:
| Place of Origin: | China |
| Brand Name: | SII |
| Model Number: | RB431Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | RB431Z | Diagonal Size: | 3.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×800, WVGA 268PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 45.36(W)×75.6(H) Mm |
| Touchscreen: | Without | Designed For: | Mobile Phone |
Product Description
3.5 inch RB431Z 480*800 LCD screen Module FOR Mobile Phone
RB431Z LCD Panel Product details :
| Brand | SII |
| Model P/N | RB431Z |
| Diagonal Size | 3.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×800, WVGA 268PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 45.36(W)×75.6(H) mm |
| Bezel Opening | 46.36(W)×76.6(H) mm |
| Outline Dim. | 51.16(W)×87.47(H)×2.86(D) mm |
| Treatment | - |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | - |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [6S1P], W/O Driver |
| Weight | - |
| Designed For | Mobile Phone |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 8-bit) + SPI, 49 pinsFPC |
| Power Supply | 1.8/2.8V (Typ.)(VDD/VCI) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| 3.5 inch RB431Z 480*800 LCD screen Module FOR Mobile Phone | |
