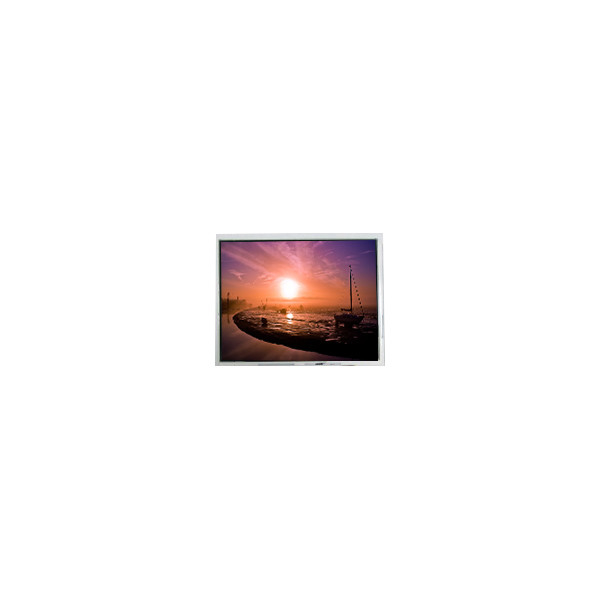

RA157Z20 4.3 inch 480*272 LCD screen module for Handheld
Product Details:
| Place of Origin: | China |
| Brand Name: | SII |
| Model Number: | RA157Z20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | RA157Z20 | Diagonal Size: | 4.3" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 480(RGB)×272, WQVGA 128PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 95.04(W)×53.856(H) Mm |
| Touchscreen: | Without | Designed For: | Handheld & PDA、Portable Navigation |
Product Description
RA157Z20 4.3 inch 480*272 LCD screen module for Handheld
RA157Z20 LCD Panel Product details :
| Brand | SII |
| Model P/N | RA157Z20 |
| Diagonal Size | 4.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×272, WQVGA 128PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 95.04(W)×53.856(H) mm |
| Bezel Opening | 98.7(W)×57.5(H) mm |
| Outline Size | 105.5(W)×67.2(H)×3.4(D) mm |
| Surface | - |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 15/35 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 50%NTSC |
| Lamp Type | 8S1PWLED, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 48.0g (Typ.) |
| Application | Handheld & PDA,Portable Navigation |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 40 pinsFPC |
| Input Voltage | 3.3/5.0V (Typ.)(DVDD/AVDD) |
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| RA157Z20 4.3 inch 480*272 LCD screen module for Handheld | |
RA157Z20 LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
RA157Z20 LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
RA157Z20 LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
RA157Z20 LCD Panel Shipping and Package :
RA157Z20 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of RA157Z20 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of RA157Z20 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of RA157Z20 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of RA157Z20 a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
