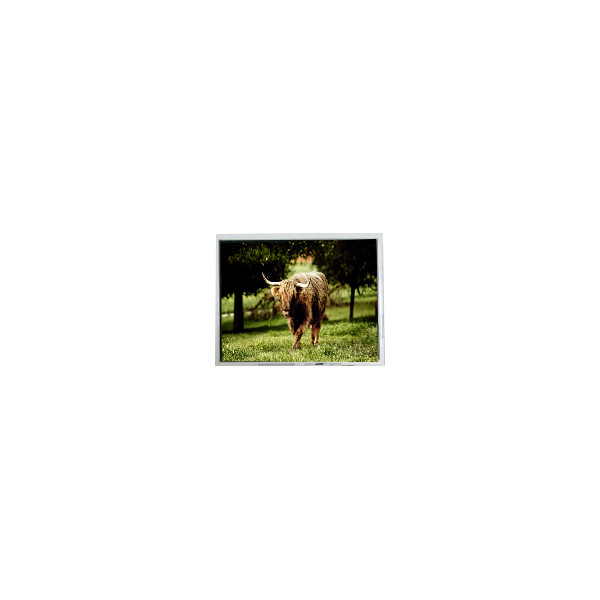

NEW 3.5 inch 320*240 35QVW1T 50 pins LCD Touch screen
Product Details:
| Place of Origin: | China |
| Brand Name: | SII |
| Model Number: | 35QVW1T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | 35QVW1T | Diagonal Size: | 3.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 115PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 70.08(W)×52.56(H) Mm |
| Touchscreen: | 4-wire Resistive Touch, F/G | Designed For: | Portable Navigation |
Product Description
NEW 3.5 inch 320*240 35QVW1T 50 pins LCD Touch screen
35QVW1T LCD Panel Product details :
| Brand | SII |
| Model P/N | 35QVW1T |
| Diagonal Size | 3.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA 115PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 70.08(W)×52.56(H) mm |
| Bezel Opening | 72.68(W)×55.16(H) mm |
| Outline Size | 76.9(W)×63.9(H)×4.5(D) mm |
| Surface | Antiglare |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/65 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 15/35 (Typ.)(Tr/Td) |
| Display Colors | 262K 60%NTSC |
| Lamp Type | 6S1PWLED |
| Frequency | - |
| Touch Screen | 4-wire Resistive Touch, F/G |
| Panel Weight | 36.0g (Typ.) |
| Application | Portable Navigation |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI, 50 pinsFPC |
| Environment | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| NEW 3.5 inch 320*240 35QVW1T 50 pins LCD Touch screen | |
35QVW1T LCD Panel Shipping and Package :
35QVW1T LCD Panel FAQ :
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: What is the different between original lcd panel and compatible lcd display?
A: Function is the same , Of course the original lcd’s quality and lifetime better than that compatible lcd .
Q: Do you accept the 35QVW1T sample order?
A: Yes , sample order is welcome.
Q: How to order if I don’t know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
