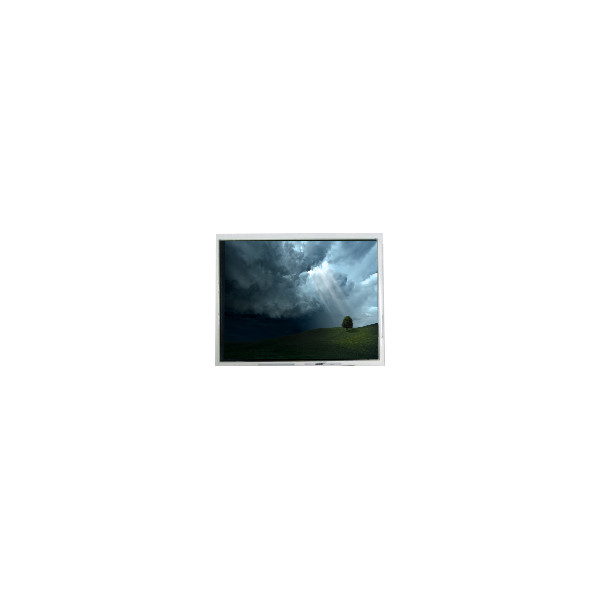

320*480 3.5 inch 35HVF0H 60Hz 39 pins LCD screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | SII |
| Model Number: | 35HVF0H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | 35HVF0H | Diagonal Size: | 3.5" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 320(RGB)×480, HVGA 164PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 49.44(W)×74.16(H) Mm |
| Touchscreen: | Without | Designed For: | Handheld & PDA |
Product Description
320*480 3.5 inch 35HVF0H 60Hz 39 pins LCD screen Module
35HVF0H LCD Panel Product details :
| Brand | SII |
| Model P/N | 35HVF0H |
| Diagonal Size | 3.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×480, HVGA 164PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 49.44(W)×74.16(H) mm |
| Bezel Opening | 50.44(W)×75.16(H) mm |
| Outline Size | 55.34(W)×84.55(H)×2.28(D) mm |
| Surface | Clear, Hard coating |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 40 (Typ.)(Tr+Td) |
| Display Colors | 262K 70%NTSC |
| Lamp Type | 5S1PWLED, Without Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | TBD |
| Application | Handheld & PDA |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins FPC |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| 320*480 3.5 inch 35HVF0H 60Hz 39 pins LCD screen Module | |
35HVF0H LCD Display About Us :
Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.
Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.
Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.
35HVF0H LCD Display Product Details :
Condition:
Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.
Order Guidance:
If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.
Product Authenticity:
The LCD screens are original and are thoroughly tested before being sent to you.
35HVF0H LCD Display Friendly Reminder :
- Installation Guide:
- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.
- Professional Installation Recommended:
- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.
- Disassembly Knowledge:
- Make sure you understand the disassembly procedure before making a purchase.
- Return Policy:
- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.
35HVF0H LCD Panel Shipping and Package :
35HVF0H LCD Panel FAQ :
Q: How long will I receive my goods 35HVF0H ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of 35HVF0H ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of 35HVF0H ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of 35HVF0H ?
A: Of course!If you make a large order, we will give you a discount.
Want to Know more details about this product
