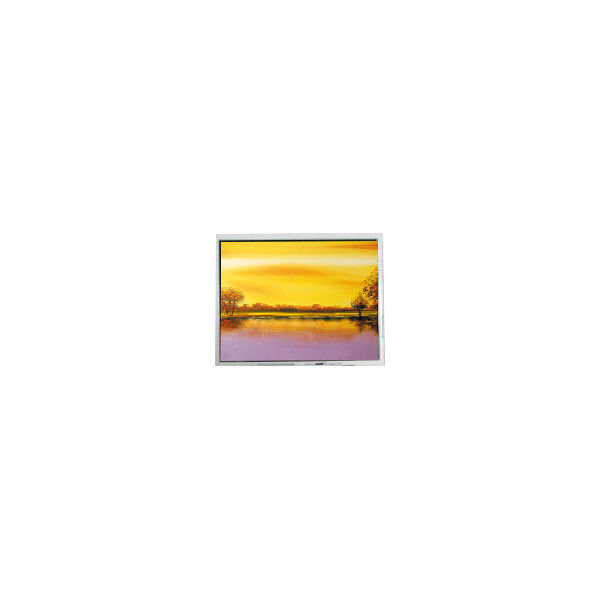

COM57H5M64KSC 640*480 5.7 inch 33 pins LCD Screen Display

Brand Name:	Ortustech
Model Number:	COM57H5M64KSC
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

COM57H5M64KSC

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Touchscreen:

Without

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

COM57H5M64KSC 640*480 5.7 inch 33 pins LCD Screen Display

COM57H5M64KSC LCD Panel Product details :

Brand	Ortustech
Model P/N	COM57H5M64KSC
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	118.7(W)×89.9(H) mm
Outline(mm)	130.32(W)×101.2(H)×14(D)
Luminance	400 (Typ.)(cd/m²)
Viewing Angle	80/80/55/60 (Typ.)(CR≥10)
Good View at	-
Color Depth	262K
Mass	122g (Typ.)
Refresh Rate	60Hz
Treatment	Hard coating (3H)
Contrast Ratio	700 : 1 (Typ.) (TM) 5.5:1 (Typ.) (RF)
Work Mode	TN, Normally White, Transflective
Response	40/60 (Max.)(Tr/Td) ms
Backlight	5S2P WLED , 70K hours , No Driver
Used for	Industrial
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6-bit), 33 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C
