products details

Home > Products >

Industrial LCD Panel Display

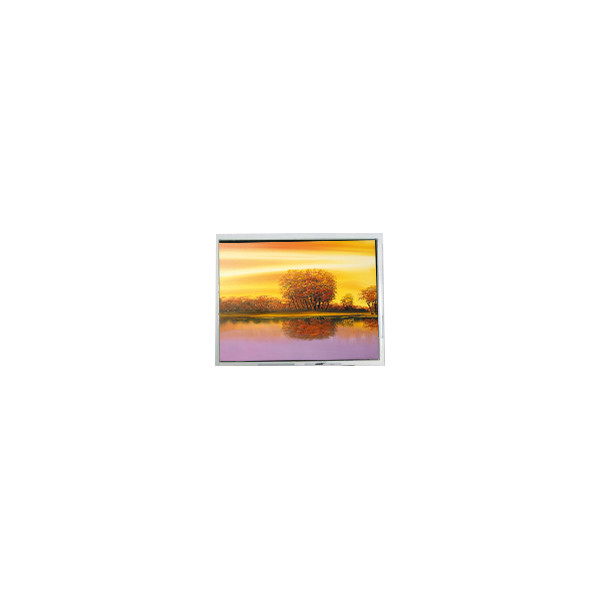

640*480 5.7 inch COM57H5M60KTC 262K 9S2P WLED LCD Panel

All Category

Floor Standing Digital Signage

640*480 5.7 inch COM57H5M60KTC 262K 9S2P WLED LCD Panel

Brand Name:	Ortustech
Model Number:	COM57H5M60KTC
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

COM57H5M60KTC

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

640(RGB)×480, VGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Touchscreen:

4-wire Resistive Touch

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

640*480 5.7 inch COM57H5M60KTC 262K 9S2P WLED LCD Panel

COM57H5M60KTC LCD Panel Product details :

Brand	Ortustech
Model P/N	COM57H5M60KTC
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	118.7(W)×89.9(H) mm
Outline(mm)	130.32 × 101.2× 5.93 (H×V×D)
Treatment	Hard coating (3H)
Luminance	450 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM) 2.5:1 (Typ.) (RF)
Viewing Angle	80/80/60/65 (Typ.)(CR≥10)
Response	40/60 (Max.)(Tr/Td) ms
Good View at	-
Work Mode	TN, Normally White, Transflective
Color Depth	262K
Backlight	9S2PWLED, 50K hours, No Driver
Mass	125g (Typ.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	4-wire Resistive Touch
Signal Type	Parallel RGB (1 ch, 6-bit), 45 pins FPC
Voltage Supply	3.3/12/21/-7V (Typ.)(VDD/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
640*480 5.7 inch COM57H5M60KTC 262K 9S2P WLED LCD Panel

COM57H5M60KTC LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

COM57H5M60KTC LCD Panel Shipping and Package :

640*480 5.7 inch COM57H5M60KTC 262K 9S2P WLED LCD Panel 0

COM57H5M60KTC LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

COM57H5M60KTC LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

COM57H5M60KTC LCD Panel FAQ :

Q: How to make payment of COM57H5M60KTC ?

A: We accept T/T , Paypal , western union .

Q: If I place order now,when will you ship the goods of COM57H5M60KTC ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can you give me a discount if I need a large quantity of COM57H5M60KTC ?

A: Of course!If you make a large order, we will give you a discount.

Q: How long will I receive my goods COM57H5M60KTC ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
