Industrial LCD Panel Display

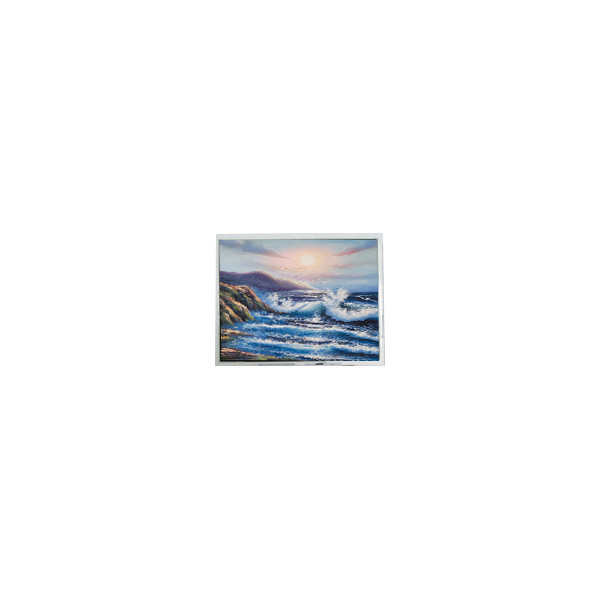

COM57H5M06XRC 5.7 inch 320*240 LCD Touch Screen Panel

All Category

Floor Standing Digital Signage

COM57H5M06XRC 5.7 inch 320*240 LCD Touch Screen Panel

Brand Name:	Ortustech
Model Number:	COM57H5M06XRC
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

COM57H5M06XRC

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 70PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Touchscreen:

4-wire Resistive Touch

Application:

Industrial

Supply Ability:

100000 Unit/Units per Month

Product Description

COM57H5M06XRC 5.7 inch 320*240 LCD Touch Screen Panel

COM57H5M06XRC LCD Panel Product details :

Brand	Ortustech
Model P/N	COM57H5M06XRC
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	119.15(W)×90.51(H) mm
Outline Dim.	130.32(W)×101.2(H)×9.16(D) mm
Treatment	-
Luminance	360 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM) 2:1 (Typ.) (RF)
View Direction	-
Response Time	40/60 (Max.)(Tr/Td)
Viewing Angle	80/80/80/80 (Min.)(CR≥10)
Operating Mode	TN, Normally White, Transflective
Support Color	262K/16.7M
Light Source	WLED, 50K hours, With LED Driver
Weight	157g (Typ.)
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	4-wire Resistive Touch
Interface Type	Parallel RGB (1 ch, 6/8-bit), 45 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
COM57H5M06XRC 5.7 inch 320*240 LCD Touch Screen Panel

COM57H5M06XRC LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

COM57H5M06XRC LCD Panel Shipping and Package :

COM57H5M06XRC 5.7 inch 320*240 LCD Touch Screen Panel 0

COM57H5M06XRC LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

COM57H5M06XRC LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

COM57H5M06XRC LCD Panel FAQ :

Q: How long will I receive my goods COM57H5M06XRC ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of COM57H5M06XRC ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of COM57H5M06XRC to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .
