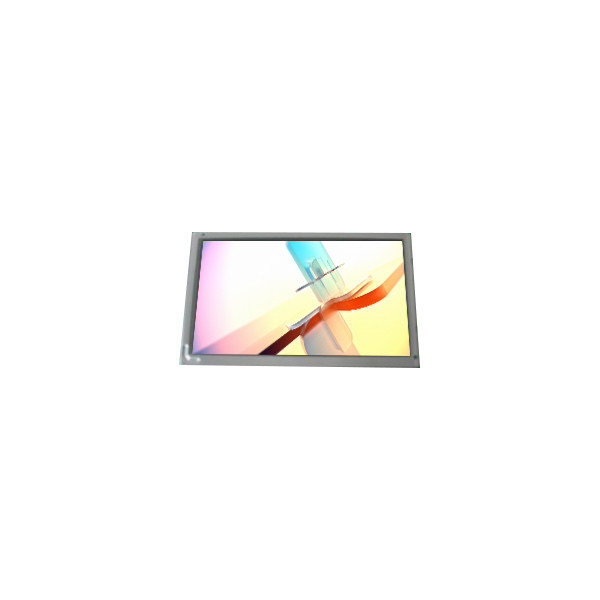

COM41T4M29GTC 320*240 4.1 inch LCD Touch Panel SCREEN

All Category

Floor Standing Digital Signage

COM41T4M29GTC 320*240 4.1 inch LCD Touch Panel SCREEN

Brand Name:	Ortustech
Model Number:	COM41T4M29GTC
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

COM41T4M29GTC

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 98PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

82.56(W)×61.92(H) Mm

Used For:

Industrial

Refresh Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

COM41T4M29GTC 320*240 4.1 inch LCD Touch Panel SCREEN

COM41T4M29GTC LCD Panel Product details :

Brand	Ortustech
Model P/N	COM41T4M29GTC
Diagonal Size	4.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 98PPI
Pixel Format	RGB Vertical Stripe
Active Area	82.56(W)×61.92(H) mm
Bezel Opening	85.26(W)×64.62(H) mm
Outline Dim.	90.31(W)×74.62(H)×4.63(D) mm
Luminance	360 cd/m² (Typ.)
View Direction	-
Viewing Angle	35/35/20/50 (Min.)(CR≥10)
Support Color	262K/16.7M
Weight	54.5g (Typ.)
Frame Rate	60Hz
Treatment	-
Contrast Ratio	200:1 (Typ.) (TM)
Response Time	40/60 (Max.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	WLED [5S2P] , 50K hours , W/O Driver
Designed For	Industrial
Touch Panel	4-wire Resistive Touch
Interface Type	Parallel RGB (1 ch, 6/8-bit)67 pins FPC
Power Supply	3.0V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C
COM41T4M29GTC 320*240 4.1 inch LCD Touch Panel SCREEN

COM41T4M29GTC LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

COM41T4M29GTC LCD Panel Shipping and Package :

COM41T4M29GTC 320*240 4.1 inch LCD Touch Panel SCREEN 0

COM41T4M29GTC LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

COM41T4M29GTC LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

COM41T4M29GTC LCD Panel FAQ :

Q: When would you ship,IF I order COM41T4M29GTC now?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: How to order if I don't know the lcd panel number ?

A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.
