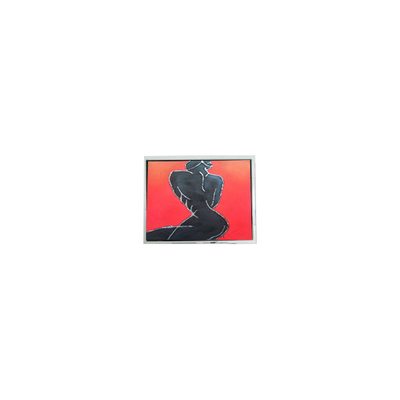

in stock 7.0 inch ETML070009DKU 1024*600 lcd Panel Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | EDT |
| Model Number: | ETML070009DKU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ETML070009DKU | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 153.6(W)×90(H) Mm |
| Used For: | Industrial | Touch Panel: | PCAP, I²C |
Product Description
in stock 7.0 inch ETML070009DKU 1024*600 lcd Panel Monitor
ETML070009DKU LCD Panel Product details :
| Brand | EDT |
| Model P/N | ETML070009DKU |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×90(H) mm |
| Bezel Opening | - |
| Outline Size | 165.75(W)×105.39(H)×7.65(D) mm |
| Surface | Hard coating (7H) |
| Brightness | 550 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/70 (Typ.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | - |
| Response Time | 13/15 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 75%NTSC |
| Lamp Type | 3S3PWLED, 70K hours, With LED Driver |
| Frequency | 60Hz |
| Touch Screen | PCAP, I²C |
| Panel Weight | - |
| Application | Industrial |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins FPC |
| Input Voltage | 3.3/10.44/18/-6V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| in stock 7.0 inch ETML070009DKU 1024*600 lcd Panel Monitor | |
ETML070009DKU LCD Panel Shipping and Package :
ETML070009DKU LCD Panel FAQ :
Q: When will my order ETML070009DKU ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel ETML070009DKU I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
