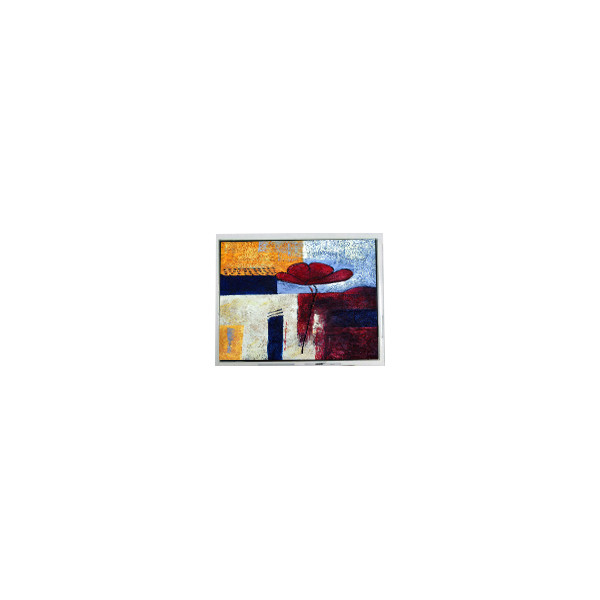

ETM070001EDH6 7.0 inch 800*480 262K LCD screen lcd Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | EDT |
| Model Number: | ETM070001EDH6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ETM070001EDH6 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Used For: | Industrial | Touch Panel: | PCAP, I²C |
Product Description
ETM070001EDH6 7.0 inch 800*480 262K LCD screen lcd Panel Display
ETM070001EDH6 LCD Panel Product details :
| Brand | EDT |
| Model P/N | ETM070001EDH6 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.4(W)×93.44(H) mm |
| Outline Dim. | 165(H)×104.44(V)×7.26(D)mm |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 850:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 5/15 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 72%NTSC |
| Light Source | WLED [3S8P], 30K hours, W/O Driver |
| Weight | TBD |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | PCAP, I²C |
| Interface Type | Parallel RGB (1 ch, 6-bit), 40 pinsFPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| ETM070001EDH6 7.0 inch 800*480 262K LCD screen lcd Panel Display | |
ETM070001EDH6 LCD Panel Shipping and Package :
ETM070001EDH6 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: Shenzhen YONG SHENG INNOVATIVE TECHNOLOGY Co, Ltd is a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: When will my order ETM070001EDH6 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel ETM070001EDH6 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
