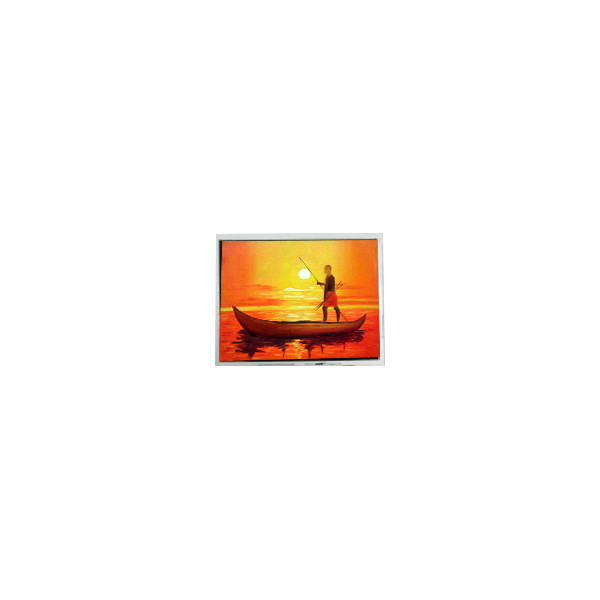

Name: ET070001EDH6 800*480 7.0 inch PCAP LCD screen Panel lcd Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: ET070001EDH6
Availability: InStock

Brand Name:	EDT
Model Number:	ET070001EDH6
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ET070001EDH6

Diagonal Size:

7.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×480, WVGA 133PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

152.4(W)×91.44(H) Mm

Used For:

Industrial

Touch Panel:

PCAP, I²C

Supply Ability:

100000 Unit/Units per Month

Product Description

ET070001EDH6 800*480 7.0 inch PCAP LCD screen Panel lcd Display

ET070001EDH6 LCD Panel Product details :

Brand	EDT
Model P/N	ET070001EDH6
Diagonal Size	7.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×480, WVGA 133PPI
Pixel Format	RGB Vertical Stripe
Active Area	152.4(W)×91.44(H) mm
Bezel Opening	154.4(W)×93.44(H) mm
Outline(mm)	165(W)×104.44(H)×7.17(D)
Luminance	300 (Typ.)(cd/m²)
Viewing Angle	75/75/70/75 (Typ.)(CR≥10)
Good View at	6 o'clock
Color Depth	262K 72% NTSC
Mass	-
Refresh Rate	60Hz
Treatment	-
Contrast Ratio	850 : 1 (Typ.) (TM)
Work Mode	TN, Normally White, Transmissive
Response	5/15 (Typ.)(Tr/Td) ms
Backlight	8S3P WLED , 30K hours , No Driver
Used for	Industrial
Touchscreen	PCAP, I²C
Signal Type	Parallel RGB (1 ch, 6-bit), 40 pins FPC
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
ET070001EDH6 800*480 7.0 inch PCAP LCD screen Panel lcd Display

ET070001EDH6 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

ET070001EDH6 LCD Panel Shipping and Package :

ET070001EDH6 800*480 7.0 inch PCAP LCD screen Panel lcd Display 0

ET070001EDH6 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

ET070001EDH6 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

ET070001EDH6 LCD Panel FAQ :

Q: How long will I receive my goods ET070001EDH6 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: Can you give me a discount if I need a large quantity of ET070001EDH6 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of ET070001EDH6 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .
