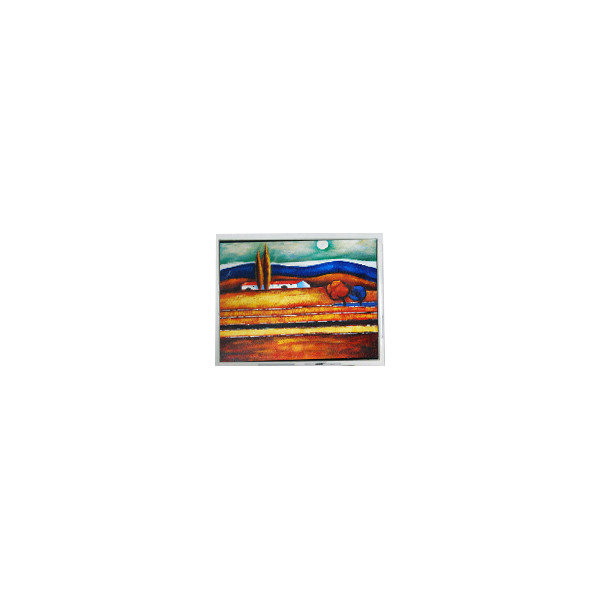

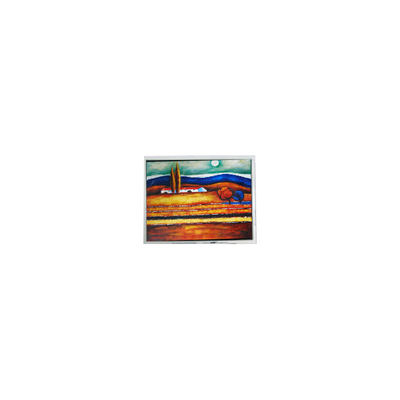

320*240 5.7 inch ET057003DM6 500 cd/m2 LCD screen Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | EDT |
| Model Number: | ET057003DM6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ET057003DM6 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
| Used For: | Industrial | Backlight: | WLED |
Product Description
320*240 5.7 inch ET057003DM6 500 cd/m2 LCD screen Panel
ET057003DM6 LCD Panel Product details :
| Brand | EDT |
| Model P/N | ET057003DM6 |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 117.2(W)×88.4(H) mm |
| Outline Size | 124.7(W)×100(H)×10.8(D) mm |
| Treatment | - |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Viewing Angle | 75/75/60/75 (Typ.)(CR≥10) |
| Response | 40 (Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 58%NTSC |
| Backlight | WLED |
| Mass | - |
| Used for | Industrial |
| Signal Type | Parallel RGB (1 ch, 8-bit), 33 pinsConnector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| 320*240 5.7 inch ET057003DM6 500 cd/m2 LCD screen Panel | |
ET057003DM6 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
ET057003DM6 LCD Panel Shipping and Package :
ET057003DM6 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
ET057003DM6 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
ET057003DM6 LCD Panel FAQ :
Q: When would you ship,IF I order ET057003DM6 now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
