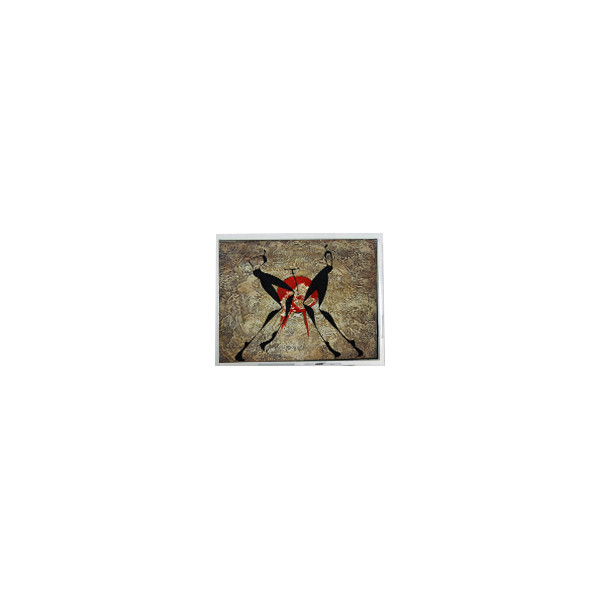

Name: ET035009DH6 3.5 inch 320*240 50 pins 60Hz LCD Screen Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: ET035009DH6
Availability: InStock

Brand Name:	EDT
Model Number:	ET035009DH6
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ET035009DH6

Diagonal Size:

3.5"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 115PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

70.08(W)×52.56(H) Mm

Used For:

Industrial

Touch Panel:

4-wire Resistive Touch

Supply Ability:

100000 Unit/Units per Month

Product Description

ET035009DH6 3.5 inch 320*240 50 pins 60Hz LCD Screen Panel

ET035009DH6 LCD Panel Product details :

Brand	EDT
Model P/N	ET035009DH6
Diagonal Size	3.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 115PPI
Pixel Format	RGB Vertical Stripe
Active Area	70.08(W)×52.56(H) mm
Bezel Opening	72.2(W)×54.76(H) mm
Outline Dim.	76.8(H)×63.8(V)×4.9(D)mm
Treatment	-
Luminance	350 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	15/35 (Typ.)(Tr/Td)
Viewing Angle	75/75/75/75 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	16.7M 61%NTSC
Light Source	WLED [6S1P], 43K hours, W/O Driver
Weight	-
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	4-wire Resistive Touch
Interface Type	Parallel RGB (1 ch, 8-bit) + SPI, 50 pinsFPC
Power Supply	3.3/3.3V (Typ.)(VCC/VDD)
Environment	Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
ET035009DH6 3.5 inch 320*240 50 pins 60Hz LCD Screen Panel

ET035009DH6 LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

ET035009DH6 LCD Panel Shipping and Package :

ET035009DH6 3.5 inch 320*240 50 pins 60Hz LCD Screen Panel 0

ET035009DH6 LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

ET035009DH6 LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

ET035009DH6 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of ET035009DH6 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of ET035009DH6 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of ET035009DH6 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .
