Name: ET028003DMU 240*320 2.8 inch LCD Screen LCD Panel FOR Handheld
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: ET028003DMU
Availability: InStock

Brand Name:	EDT
Model Number:	ET028003DMU
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ET028003DMU

Diagonal Size:

2.8"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

240(RGB)×320, QVGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

43.2(W)×57.6(H) Mm

Used For:

Handheld & PDA

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

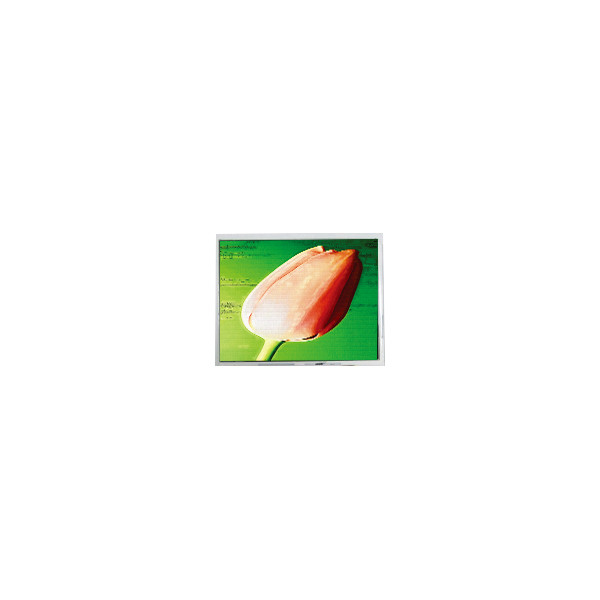

ET028003DMU 240*320 2.8 inch LCD Screen LCD Panel FOR Handheld

ET028003DMU LCD Panel Product details :

Brand	EDT
Model P/N	ET028003DMU
Diagonal Size	2.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	240(RGB)×320, QVGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	43.2(W)×57.6(H) mm
Bezel Opening	44.2(W)×58.6(H) mm
Outline Size	50(W)×69.7(H)×3.1(D) mm
Surface	-
Brightness	350 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	70/75/75/55 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	10/20 (Typ.)(Tr/Td)
Display Colors	262K 62%NTSC
Lamp Type	1S4PWLED, 30K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	TBD
Application	Handheld & PDA
Signal Interface	CPU/RGB/SPI, 50 pins FPC
Input Voltage	2.8/2.8V (IOVCC/VCI)
Environment	Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C
ET028003DMU 240*320 2.8 inch LCD Screen LCD Panel FOR Handheld

ET028003DMU LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

ET028003DMU LCD Panel Shipping and Package :

ET028003DMU 240*320 2.8 inch LCD Screen LCD Panel FOR Handheld 0

ET028003DMU LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

ET028003DMU LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

ET028003DMU LCD Panel FAQ :

Q: Can You declare my order of ET028003DMU to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of ET028003DMU via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can you give me a discount if I need a large quantity of ET028003DMU ?

A: Of course!If you make a large order, we will give you a discount.
