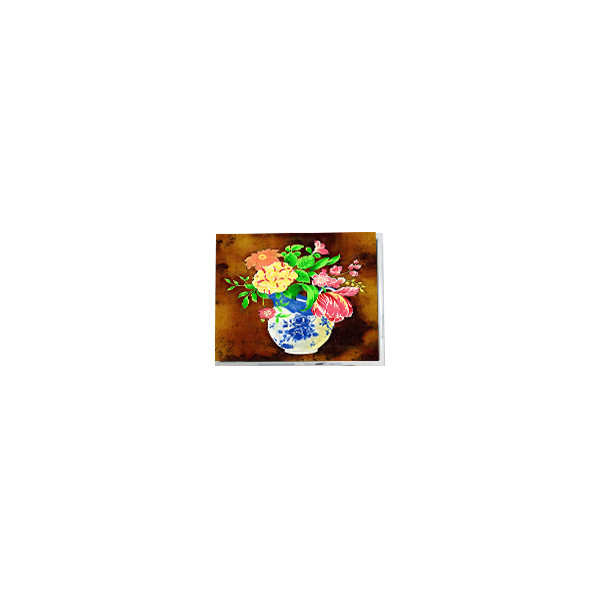

Name: ET028002DMU 240*320 2.8 inch LCD Monitor Screen LCD Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: ET028002DMU
Availability: InStock

Brand Name:	EDT
Model Number:	ET028002DMU
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ET028002DMU

Diagonal Size:

2.8"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

240(RGB)×320, QVGA 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

43.2(W)×57.6(H) Mm

Used For:

Mobile Phone

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

ET028002DMU 240*320 2.8 inch LCD Monitor Screen LCD Panel

ET028002DMU LCD Panel Product details :

Brand	EDT
Model P/N	ET028002DMU
Diagonal Size	2.8"
Panel Type	a-Si TFT-LCD, LCM
Resolution	240(RGB)×320, QVGA 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	43.2(W)×57.6(H) mm
Bezel Opening	44.2(W)×58.6(H) mm
Outline Size	50.5(W)×69.6(H)×3.1(D) mm
Surface	-
Brightness	350 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Viewing Angle	75/70/75/55 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	10/15 (Typ.)(Tr/Td)
Display Colors	262K 62%NTSC
Lamp Type	1S4PWLED, Without Driver
Frequency	-
Touch Screen	Without
Panel Weight	-
Application	Mobile Phone
Signal Interface	CPU/RGB/SPI, 50 pinsFPC
Input Voltage	2.8/2.8V (Typ.)(VCI/IOVCC)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
ET028002DMU 240*320 2.8 inch LCD Monitor Screen LCD Panel

ET028002DMU LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

ET028002DMU LCD Panel Shipping and Package :

ET028002DMU 240*320 2.8 inch LCD Monitor Screen LCD Panel 0

ET028002DMU LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

ET028002DMU LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

ET028002DMU LCD Panel FAQ :

Q: How long will I receive my goods of lcd ET028002DMU ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order ET028002DMU ship?

A: The order are shipped within 1-2 working days after received the payment.

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
