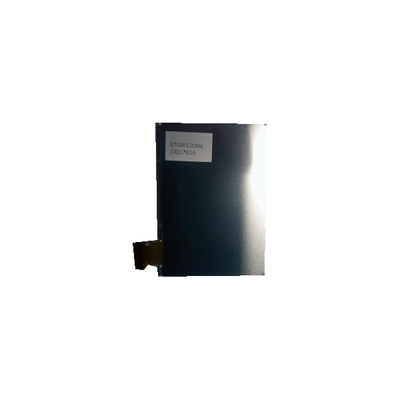

240*320 2.4 inch ET024012DMA LCD Screen Monitor for Handheld PDA
Product Details:
| Place of Origin: | China |
| Brand Name: | EDT |
| Model Number: | ET024012DMA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ET024012DMA | Diagonal Size: | 2.4" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 240(RGB)×320, QVGA 166PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 36.72(W)×48.96(H) Mm |
| Used For: | Handheld & PDA | Touchscreen: | Without |
Product Description
240*320 2.4 inch ET024012DMA LCD Screen Monitor for Handheld PDA
ET024012DMA LCD Panel Product details :
| Brand | EDT |
| Model P/N | ET024012DMA |
| Diagonal Size | 2.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 240(RGB)×320, QVGA 166PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 36.72(W)×48.96(H) mm |
| Bezel Opening | 37.72(W)×49.96(H) mm |
| Outline Size | 42.72(W)×60.4(H) mm |
| Brightness | 350 cd/m² (Typ.) |
| Viewing Angle | 70/70/70/70 (Typ.)(CR≥10) |
| Best View on | - |
| Display Colors | 262K 59%NTSC |
| Frequency | 60Hz |
| Weight | - |
| Surface | - |
| Contrast Ratio | 820:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 35 (Typ.)(Tr+Td) |
| Lamp Type | 4S1P WLED , 10K hours , Without Driver |
| Touch Screen | Without |
| Application | Handheld & PDA |
| Signal Interface | 8/9/16/18-bit 8080 parallel, 35 pinsFPC |
| Input Voltage | 3.0/3.0V (Typ.)(VCI/IOVCC) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| 240*320 2.4 inch ET024012DMA LCD Screen Monitor for Handheld PDA | |
ET024012DMA LCD Panel Shipping and Package :
ET024012DMA LCD Panel FAQ :
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
Q: How long will I receive my goods of lcd ET024012DMA ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order ET024012DMA ship?
A: The order are shipped within 1-2 working days after received the payment.
