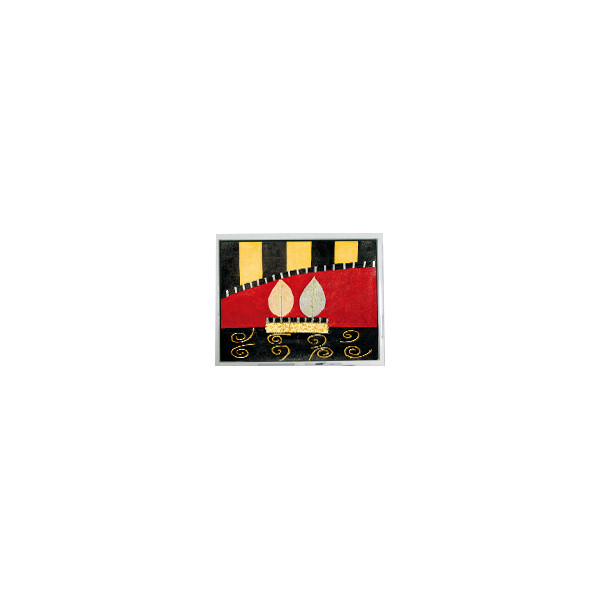

Name: 2.0 inch ET020003DMU 176*220 39 pins LCD Screen Display Panel
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: ET020003DMU
Availability: InStock

Brand Name:	EDT
Model Number:	ET020003DMU
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

ET020003DMU

Diagonal Size:

2.0"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

176(RGB)×220, QCIF+ 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

31.68(W)×39.6(H) Mm

Used For:

Mobile Phone

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

2.0 inch ET020003DMU 176*220 39 pins LCD Screen Display Panel

ET020003DMU LCD Panel Product details :

Brand	EDT
Model P/N	ET020003DMU
Diagonal Size	2.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	176(RGB)×220, QCIF+ 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	31.68(W)×39.6(H) mm
Bezel Opening	33.68(W)×41.6(H) mm
Outline Dim.	38.18(H)×53.32(V)×3.3(D) mm
Treatment	-
Luminance	250 cd/m² (Typ.)
Contrast Ratio	200:1 (Typ.) (TM)
View Direction	-
Response Time	12/18 (Typ.)(Tr/Td)
Viewing Angle	45/45/60/20 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 62%NTSC
Light Source	WLED [1S2P], W/O Driver
Weight	-
Designed For	Mobile Phone
Frame Rate	-
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit) + SPI, 39 pinsFPC
Power Supply	2.8/2.8/2.8V (Typ.)(VCI/VCC/IOVCC)
Environment	Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C
2.0 inch ET020003DMU 176*220 39 pins LCD Screen Display Panel

ET020003DMU LCD Display Features :

High Quality:

Highest quality touch LCD screen replacement parts.

Repair Utility:

Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.

Thorough Testing:

Each assembly is tested before shipping to ensure 100% functionality.

Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.

ET020003DMU LCD Panel Shipping and Package :

2.0 inch ET020003DMU 176*220 39 pins LCD Screen Display Panel 0

ET020003DMU LCD Display Shipping Policy :

Shipping Method:

If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.

Specified Logistics:

If you require a specific logistics company, please inform us in advance.

ET020003DMU LCD Display Return Policy :

Product Status:

The product's condition (new or old) will be indicated in the product title.

Return and Exchange Conditions:

If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.

Return Procedure:

When returning the product, please provide a detailed explanation of the issues encountered.

Include actual photos showing the problems with the product.

ET020003DMU LCD Panel FAQ :

Q:If I place order now,when will you ship the goods of ET020003DMU ?

A: The order will be shipped within 2-3 working days after received your payment.

Q:Do you accept sample orders of ET020003DMU ?

A:Of course!sample order is welcome !

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods ET020003DMU ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
