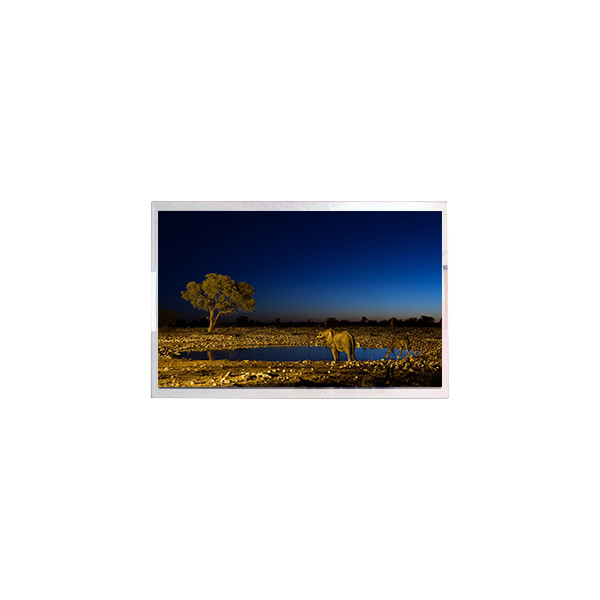

9.2 inch 462*1920 AV092K5U-N10 LCD Screen for Stretched Bar LCD
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | AV092K5U-N10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | AV092K5U-N10 | Diagonal Size: | 9.2" (Native Bar) |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, CELL , Q-CUT (Full Cell) | Resolution: | 462(RGB)×1920 215PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 54.442(W)×226.253(H) Mm |
| Used For: | Stretched Bar LCD /Automotive Display | Frame Rate: | 60Hz |
| Support Color: | 16.7M 60% NTSC | Operating Mode: | ADS, Normally Black, Transmissive |
Product Description
9.2 inch 462*1920 AV092K5U-N10 LCD Screen for Stretched Bar LCD
AV092K5U-N10 LCD Panel Product details :
| Brand | BOE |
| Model P/N | AV092K5U-N10 |
| Diagonal Size | 9.2" (Native bar) |
| Panel Type | a-Si TFT-LCD, CELL , Q-CUT (Full Cell) |
| Resolution | 462(RGB)×1920 215PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 54.442(W)×226.253(H) mm |
| Bezel Opening | - |
| Outline Dim. | 58.042(W)×233.853(H) ×1(D) mm |
| Treatment | Without Polarizer |
| Luminance | 0 cd/m² |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 60% NTSC |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 4.4% (Typ.) |
| Light Source | No B/L |
| Weight | - |
| Designed For | Stretched Bar LCD /Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Driver IC | COG Suggest SC7706, SC7707, ICN9707, NV3051F |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
AV092K5U-N10 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
AV092K5U-N10 LCD Panel Shipping and Package :
AV092K5U-N10 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
AV092K5U-N10 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
AV092K5U-N10 LCD Panel FAQ :
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of AV092K5U-N10 ?
A: Of course!sample order is welcome !
Q: How to make payment of AV092K5U-N10 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of AV092K5U-N10 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
