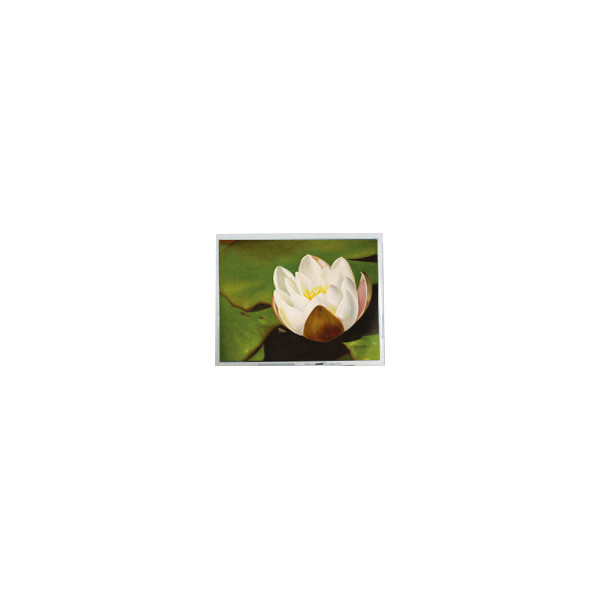

7.0 inch 800*480 ET0700A7DMU 262K 450 cd/m2 LCD Screen Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | EDT |
| Model Number: | ET0700A7DMU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ET0700A7DMU | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 133PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 152.4(W)×91.44(H) Mm |
| Used For: | Industrial | Touchscreen: | Without |
Product Description
7.0 inch 800*480 ET0700A7DMU 262K 450 cd/m2 LCD Screen Parts
ET0700A7DMU LCD Panel Product details :
| Brand | EDT |
| Model P/N | ET0700A7DMU |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 155.4(W)×93.44(H) mm |
| Outline Dim. | 165(H)×104(V)×9(D) mm |
| Treatment | Antiglare |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 350:1 (Typ.) (TM) |
| View Direction | 12 o'clock |
| Response Time | 5/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/75/65/65 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 47%NTSC |
| Light Source | WLED [3S9P], 40K hours, With LED Driver |
| Weight | - |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | Parallel RGB (1 ch, 6-bit), 40 pinsConnector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| 7.0 inch 800*480 ET0700A7DMU 262K 450 cd/m2 LCD Screen Parts | |
ET0700A7DMU LCD Panel Shipping and Package :
ET0700A7DMU LCD Panel FAQ :
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q:Can you declared low value for my order when shipping?
A:Yes, We can do it for you if you need.
Q: What happen if the lcd panel ET0700A7DMU I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
