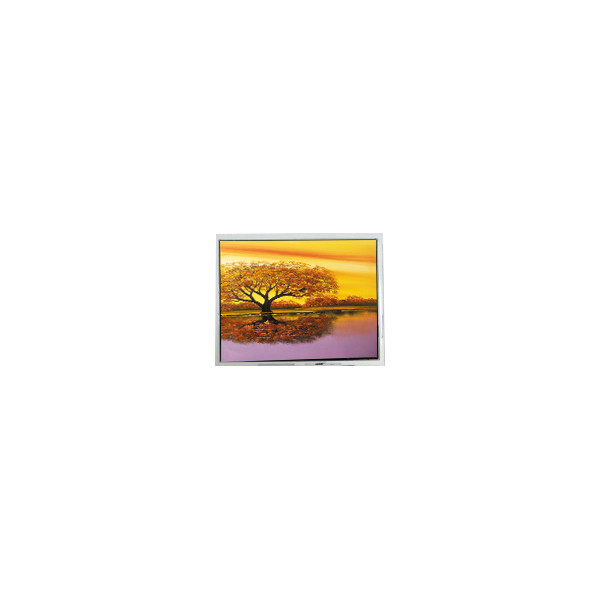

Mini 800*480 ET0500G1DH6 5.0 inch PCAP LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | EDT |
| Model Number: | ET0500G1DH6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ET0500G1DH6 | Diagonal Size: | 5.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 188PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 108(W)×64.8(H) Mm |
| Used For: | Industrial | Touchscreen: | PCAP, USB |
Product Description
Mini 800*480 ET0500G1DH6 5.0 inch PCAP LCD Screen Display
ET0500G1DH6 LCD Panel Product details :
| Brand | EDT |
| Model P/N | ET0500G1DH6 |
| Diagonal Size | 5.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 188PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 108(W)×64.8(H) mm |
| Bezel Opening | - |
| Outline Size | 118.5(W)×77.6(H)×8.03(D) mm |
| Treatment | - |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 450 : 1 (Typ.) (TM) |
| Viewing Angle | 69/69/62/72 (Typ.)(CR≥10) |
| Response | 15/35 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 50%NTSC |
| Backlight | 7S2PWLED, 40K hours, No Driver |
| Mass | - |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | PCAP, USB |
| Signal Type | LVDS (1 ch, 6-bit), 33 pinsConnector |
| Voltage Supply | 3.3/3.3V (Typ.)(VDD/VCC) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| Mini 800*480 ET0500G1DH6 5.0 inch PCAP LCD Screen Display | |
ET0500G1DH6 LCD Display Features :
High Quality:
Highest quality touch LCD screen replacement parts.
Repair Utility:
Suitable for repairing faulty screens, touch screen problems, dead pixels, cracked touchscreens, and other related issues.
Thorough Testing:
Each assembly is tested before shipping to ensure 100% functionality.
Quality control includes checks for dark spots, color points, and dead pixels, ensuring no defects.
ET0500G1DH6 LCD Panel Shipping and Package :
ET0500G1DH6 LCD Display Shipping Policy :
Shipping Method:
If the buyer selects a specific courier (e.g., FedEx), we may ship the product using an equivalent service level from other logistics companies such as DHL, UPS, TNT, or others.
Specified Logistics:
If you require a specific logistics company, please inform us in advance.
ET0500G1DH6 LCD Display Return Policy :
Product Status:
The product's condition (new or old) will be indicated in the product title.
Return and Exchange Conditions:
If the product encounters quality problems within 30 days of receipt, we offer free returns and exchanges.
Return Procedure:
When returning the product, please provide a detailed explanation of the issues encountered.
Include actual photos showing the problems with the product.
ET0500G1DH6 LCD Panel FAQ :
Q: How long will I receive my goods ET0500G1DH6 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of ET0500G1DH6 ?
A: We accept T/T , Paypal , western union .
Q: If I place order now,when will you ship the goods of ET0500G1DH6 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of ET0500G1DH6 ?
A: Of course!If you make a large order, we will give you a discount.
Want to Know more details about this product
