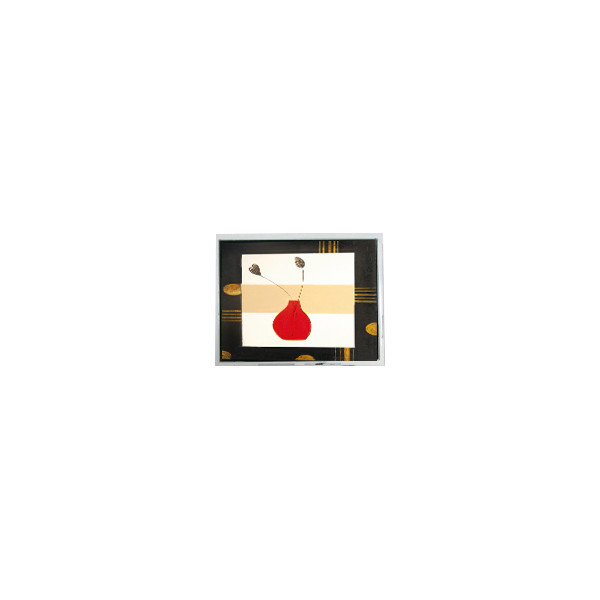

ER0570A2NC6 5.7 inch 120Hz LCD Screen Module for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | EDT |
| Model Number: | ER0570A2NC6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | ER0570A2NC6 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | CSTN-LCD, LCM | Resolution: | 320(RGB)×240, QVGA 70PPI |
| Pixel Format: | RGBW Vertical Stripe | Active Area: | 115.2(W)×86.4(H) Mm |
| Used For: | Industrial | Touchscreen: | Without |
Product Description
ER0570A2NC6 5.7 inch 120Hz LCD Screen Module for Industrial
ER0570A2NC6 LCD Panel Product details :
| Brand | EDT |
| Model P/N | ER0570A2NC6 |
| Diagonal Size | 5.7" |
| Panel Type | CSTN-LCD, LCM |
| Resolution | 320(RGB)×240, QVGA 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 115.2(W)×86.4(H) mm |
| Bezel Opening | 118.18(W)×89.38(H) mm |
| Outline(mm) | 154.6(W)×114.8(H)×8.8(D) |
| Luminance | 180 (Typ.)(cd/m²) |
| Viewing Angle | 45/45/20/38 (Typ.)(CR≥2) |
| Good View at | 6 o'clock |
| Color Depth | Color |
| Mass | - |
| Refresh Rate | 120Hz |
| Treatment | - |
| Contrast Ratio | 50 : 1 (Typ.) (TM) |
| Work Mode | STN, Normally Black, Transmissive |
| Response | 350/250 (Typ.)(Tr/Td) ms |
| Backlight | 1 pcs CCFL , 50K hours , No Driver |
| Used for | Industrial |
| Touchscreen | Without |
| Signal Type | Parallel Data (1ch, 8-bit), 15 pins Connector |
| Voltage Supply | 3.0/5.0V (Typ.)(VDD) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: 0 ~ 50 °C |
| ER0570A2NC6 5.7 inch 120Hz LCD Screen Module for Industrial | |
ER0570A2NC6 LCD Panel Shipping and Package :
ER0570A2NC6 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
