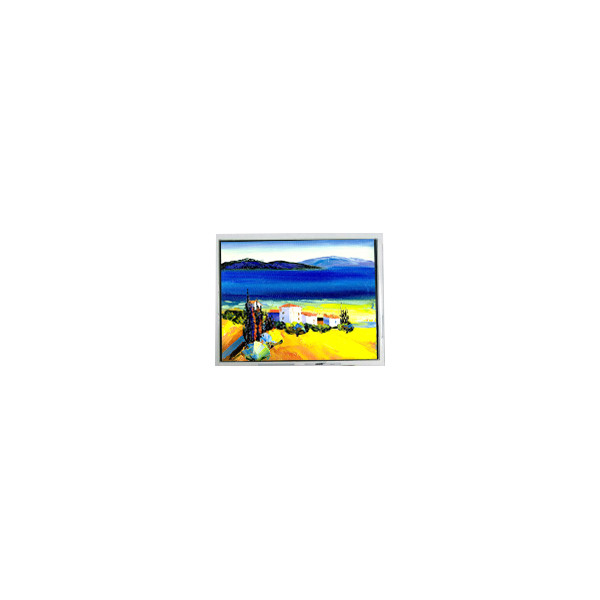

HSD050JDW2-C10-0220 800*480 5.0 inch LCD Screen Display

Brand Name:	HannStar
Model Number:	HSD050JDW2-C10-0220
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD050JDW2-C10-0220

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, COG

Resolution:

800(RGB)×480, WVGA 188PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

108(W)×64.8(H) Mm

Used For:

Industrial、Automotive Display

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD050JDW2-C10-0220 800*480 5.0 inch LCD Screen Display

HSD050JDW2-C10-0220 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD050JDW2-C10-0220
Diagonal Size	5.0"
Panel Type	a-Si TFT-LCD, CELL, COG
Resolution	800(RGB)×480, WVGA 188PPI
Pixel Format	RGB Vertical Stripe
Active Area	108(W)×64.8(H) mm
Bezel Opening	-
Outline Size	116.2(W)×73.6(H)×1.27(D) mm
Surface	Hard coating, Reflection 5.0% (Typ.)
Brightness	0 cd/m²
Contrast Ratio	1400:1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	22 (Typ.)(Tr+Td)
Glass Depth	0.50+0.50 mm
Transmissivity	2.98% (Typ.)(with Polarizer)
Display Colors	16.7M 70%NTSC
Lamp Type	No B/L, Without Driver
Frequency	60Hz
Touch Screen	Without
Driver IC	COG Built-in 1 source + 1 gate chips
Panel Weight	23.5g (Typ.)
Application	Industrial,Automotive Display
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C
HSD050JDW2-C10-0220 800*480 5.0 inch LCD Screen Display

HSD050JDW2-C10-0220 LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

HSD050JDW2-C10-0220 LCD Panel Shipping and Package :

HSD050JDW2-C10-0220 LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your HSD050JDW2-C10-0220 LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

HSD050JDW2-C10-0220 LCD Panel FAQ :

Q: Do you accept the sample order?

A: Yes , sample order is welcome.

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long will I receive my goods of lcd HSD050JDW2-C10-0220 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: When will my order HSD050JDW2-C10-0220 ship?

A: The order are shipped within 1-2 working days after received the payment.
