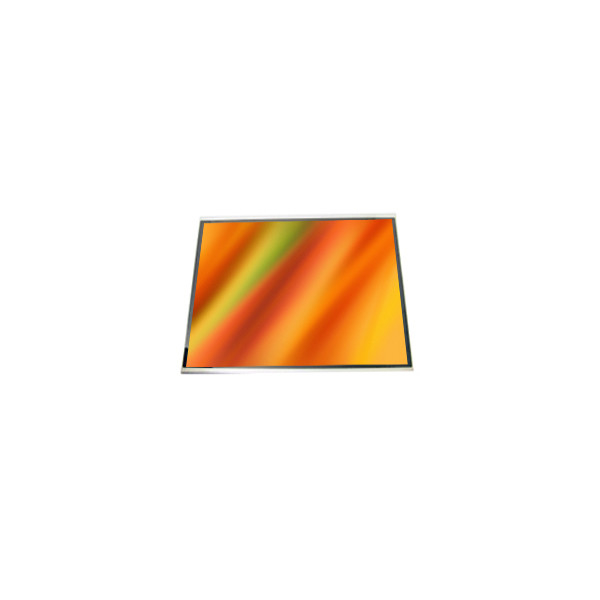

HSD055BHW3-P00 5.5 inch 720*1280 900:1 LCD display Panel

All Category

Floor Standing Digital Signage

HSD055BHW3-P00 5.5 inch 720*1280 900:1 LCD display Panel

Brand Name:	HannStar
Model Number:	HSD055BHW3-P00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

HSD055BHW3-P00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, CELL, Q-CUT (Full Cell)

Resolution:

720(RGB)×1280, WXGA 268PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

68.04(W)×120.96(H) Mm

Display Colors:

16.7M 70% NTSC

Treatment:

Without Polarizer

Transmissivity:

11.9% (Typ.)(without Polarizer)

Used For:

Mobile Phone

Supply Ability:

100000 Unit/Units per Month

Product Description

HSD055BHW3-P00 5.5 inch 720*1280 900:1 LCD display Panel

HSD055BHW3-P00 LCD Panel Product details :

Brand	HannStar
Model P/N	HSD055BHW3-P00
Diagonal Size	5.5"
Panel Type	a-Si TFT-LCD, CELL, Q-CUT (Full Cell)
Resolution	720(RGB)×1280, WXGA 268PPI
Pixel Format	RGB Vertical Stripe
Active Area	68.04(W)×120.96(H) mm
Bezel Opening	-
Outline(mm)	70.38(W)×128.06(H)×0.8(D)
Luminance	0 (cd/m²)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Good View at	-
Glass Thickness	0.40+0.40 mm
Color Depth	16.7M 70% NTSC
Mass	-
Refresh Rate	-
Treatment	Without Polarizer
Contrast Ratio	900 : 1 (Typ.) (TM)
Work Mode	IPS pro, Normally Black, Transmissive
Response	10/20 (Typ.)(Tr/Td) ms
Transmissivity	11.9% (Typ.)(without Polarizer)
Backlight	No B/L
Used for	Mobile Phone
Touchscreen	Without
Driver IC list	SuggestCOGHX8394-A01, HX8394-D, NT35521, NT35521S, ILI9881, RM68200, OTM1283A, OTM1284A, R61350, JD9365, LIL9881C, HX8394F, OTA7291A, OTM1287A, HX8260A, ICN9706
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

HSD055BHW3-P00 LCD Panel Payment Instructions :

Accepted Payment Methods:

We prioritize the safety and convenience of our customers by accepting payments through Escrow, which allows you to pay securely online using your Credit Card.

Payment Timeline:

To ensure the timely processing and shipping of your order, please make your payment within 3 days of placing the order. Prompt payment is appreciated and helps us maintain efficient service. If you encounter any issues or delays with your payment, please don't hesitate to contact us immediately. We are here to assist you and resolve any problems to ensure a smooth transaction.

HSD055BHW3-P00 LCD Panel Shipping and Package :

HSD055BHW3-P00 LCD Panel Shipment Information :

Shipping Address:

We will ship your order to the address provided at the time of payment. Please ensure the address you entered is correct and up-to-date to avoid any delivery issues.

Estimated Delivery Time:

Typically, your order will arrive within 15-35 days. For orders shipped to Brazil, the estimated delivery time is 20-40 days. Some countries or regions may experience longer shipping times.

Delayed Shipments:

If your parcel has not arrived within the expected timeframe, please contact us first before taking any further action. We are here to assist you and will work to provide a satisfactory resolution.

Dispute Policy:

Please refrain from opening a dispute within the first 60 days after placing your order. If your order has not arrived after 60 days, you may contact us to request a refund or a resend of the product.

Customs Duty and Import Tax:

We are not responsible for any customs duties or import taxes that may be applicable in your country. Please check your local customs regulations for more information.

Important Instructions for Receiving and Handling Your HSD055BHW3-P00 LCD Panel :

Inspecting the Package Upon Arrival:

When you receive the package, carefully inspect its condition.

If you notice any obvious damage, dents, or deformities, prepare to record a video as you open the package. This evidence is crucial for any potential claims.

Reporting Damaged Goods:

If you find that the LCD panel is damaged, immediately take detailed images and videos showing the damage.

Send these visuals to us to document the issue.

Our team will handle shipping-related damages but not those caused during installation. To secure your rights, provide the requested evidence and initiate a dispute for a refund if necessary.

Testing Before Installation:

After confirming the screen is undamaged, thoroughly test its functionality before proceeding with installation.

Do not attempt to install the screen yourself unless you are a professional. We recommend that installation be carried out by qualified technical personnel. We are not responsible for damages resulting from unprofessional installation.

Product Authenticity and Labels:

Each product from our store includes a unique anti-tear label.

Do not remove this label, as it verifies the product's authenticity and origin from our store.

Documenting Product Issues:

If you encounter any issues with the product, ensure that your video proof includes the labels as evidence.

Following these guidelines will help ensure a smooth process and protect your purchase rights. Thank you for your cooperation.

HSD055BHW3-P00 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of HSD055BHW3-P00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of HSD055BHW3-P00 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How to make payment of HSD055BHW3-P00 ?

A: We accept T/T , Paypal , western union .

Q: How long is the warranty ?

A: We offer 90 days warranty .
