NEW 1024*600 10.2 inch CLAA102NDA1 CW LCD Screen module
  • name
  • name
  • name
  • name

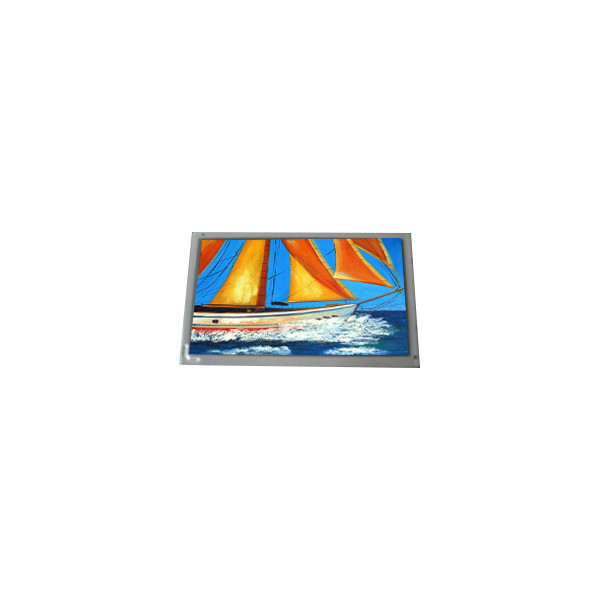

NEW 1024*600 10.2 inch CLAA102NDA1 CW LCD Screen module

Brand Name: CPT
Model Number: CLAA102NDA1 CW
MOQ: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model Name:
CLAA102NDA1 CW
Diagonal Size:
10.2"
Panel Type:
A-Si TFT-LCD, LCM
Resolution:
1024(RGB)×600, WSVGA 116PPI
Pixel Format:
RGB Vertical Stripe
Active Area:
222.72(W)×130.5(H) Mm
Touch Panel:
Without
Designed For:
Industrial、Automotive Display
Supply Ability:
100000 Unit/Units per Month
Product Description

NEW 1024*600 10.2 inch CLAA102NDA1 CW LCD Screen module



CLAA102NDA1 CW LCD Panel Product details :



Brand CPT
Model P/N CLAA102NDA1 CW
Diagonal Size 10.2"
Panel Type a-Si TFT-LCD, LCM
Resolution 1024(RGB)×600, WSVGA 116PPI
Pixel Format RGB Vertical Stripe
Active Area 222.72(W)×130.5(H) mm
Bezel Opening 225.32(W)×133.1(H) mm
Outline(mm) 236(W)×148(H)×6.1(D)
Luminance 600 (Typ.)(cd/m²)
Viewing Angle 70/70/55/55 (Typ.)(CR≥10)
Good View at 6:30 o'clock
Color Depth 262K/16.7M 70% NTSC
Mass TBD
Refresh Rate 60Hz
Treatment Antiglare, Hard coating (3H)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Work Mode TN, Normally White, Transmissive
Response 25 (Typ.)(Tr+Td) ms
Backlight 4S6P WLED , 70K hours , No Driver
Used for Industrial,Automotive Display
Touchscreen Without
Signal Type LVDS (1 ch, 6/8-bit), 60 pins FPC
Voltage Supply 3.3/9.6/20/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Max. Ratings Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)
NEW 1024*600 10.2 inch CLAA102NDA1 CW LCD Screen module

CLAA102NDA1 CW LCD Screen Report Item :

Product Overview:
We specialize in the sale of industrial LCD panels and touch screens, offering a wide range of products and technical support. Our inventory includes LCD screens and touch screens from 5.7 inches to 42 inches, suitable for numerous industrial purposes.

Product Information and Services:

Comprehensive Product Information: We provide detailed product information for all types of LCD screens and touch screens, including specifications, features, and compatibility.

Technical Consultation: Our team of experts is available to offer technical consultations, helping you select the right screen for your specific needs and ensuring optimal performance.

Stock and Availability:
Our extensive stock ranges from 5.7 inches to 42 inches, catering to various industrial requirements. Whether you need a display for vehicles, medical equipment, injection molding machines, or other industrial equipment, we have the right solution for you.

Why Choose Us:

Extensive Inventory: A wide range of sizes and specifications to meet diverse industrial needs.


Expert Support: Professional technical consultation to guide you through the selection process.


Quality Assurance: High-quality products designed for durability and reliability in industrial applications.


CLAA102NDA1 CW LCD Panel Shipping and Package :

NEW 1024*600 10.2 inch CLAA102NDA1 CW LCD Screen module 0

CLAA102NDA1 CW LCD Screen Shipment Information :

Worldwide Shipping:
We provide global shipping to ensure our products reach customers no matter where they are located.

Standard Shipping by DHL:

Delivery Time: Your order will be shipped via DHL and will typically arrive within 3-7 days.

Customs Fees: Please note that depending on your country's customs policies, additional duty fees may apply.

Expedited Service: DHL offers fast and reliable delivery to most destinations worldwide.

Economical Shipping by HK Post:

Lower Fees: For customers looking to minimize shipping costs and avoid customs fees, we offer the option to ship via Hong Kong Post.
Delivery Time: Shipments via HK Post usually take 15-20 days to arrive.

Customs Handling: Inform us if you prefer this option, and we will assist you in arranging it.

Customs and Import Fees:

Responsibility: Please be aware that we are not responsible for any import fees, remote area charges, taxes, or other customs-related fees that may apply to your shipment.

Policy Awareness: It is the buyer's responsibility to understand their country's customs policies and potential fees before placing an order.

CLAA102NDA1 CW LCD Screen Refund & Return Policy :

Defective Items:

If you receive a defective item, please notify us within 3 days of receiving your order. We will work with you to resolve the issue promptly.

Return Conditions:

Items should be returned in their original packaging whenever possible to ensure they are protected during transit and to facilitate the return process.

Shipping Considerations:

China Post Air Mail: Please note that due to regional weather conditions and other factors, delivery times for China Post Air Mail can range from 10 to 50 days. We appreciate your patience if you choose this shipping method.


CLAA102NDA1 CW LCD Panel FAQ :



Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!



Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.



Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.



Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
