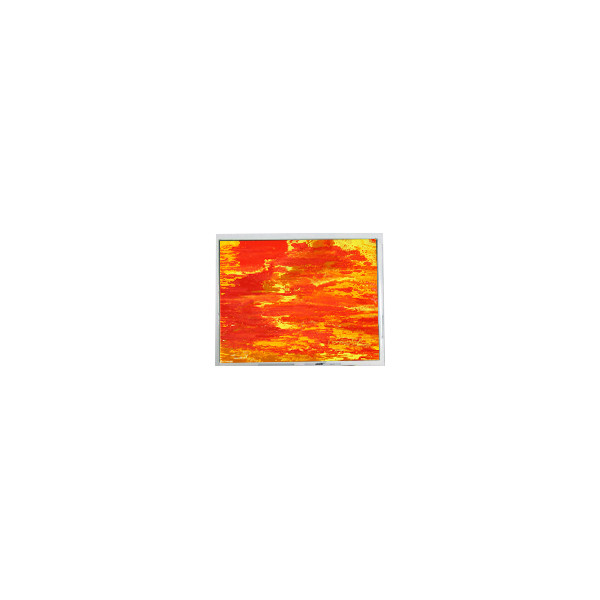

CLAA057VA02CW 5.7 inch 640*480 WLED 60Hz LCD screen MONITOR
Product Details:
| Place of Origin: | China |
| Brand Name: | CPT |
| Model Number: | CLAA057VA02CW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | CLAA057VA02CW | Diagonal Size: | 5.7" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×480, VGA 139PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 116.16(W)×87.12(H) Mm |
| Used For: | Industrial | Refresh Rate: | 60Hz |
Product Description
CLAA057VA02CW 5.7 inch 640*480 WLED 60Hz LCD screen MONITOR
CLAA057VA02CW LCD Panel Product details :
| Brand | CPT |
| Model P/N | CLAA057VA02CW |
| Diagonal Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 139PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 116.16(W)×87.12(H) mm |
| Bezel Opening | 118.96(W)×89.92(H) mm |
| Outline(mm) | 131.14(W)×104.44(H)×8.35(D) |
| Luminance | 220 (Typ.)(cd/m²) |
| Viewing Angle | 70/70/50/50 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K 50% NTSC |
| Mass | 165g |
| Refresh Rate | 60Hz |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 300 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 30 (Typ.)(Tr+Td) ms |
| Backlight | WLED, With LED Driver |
| Used for | Industrial |
| Touchscreen | Without |
| Signal Type | TTL (1 ch, 6-bit), 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
| CLAA057VA02CW 5.7 inch 640*480 WLED 60Hz LCD screen MONITOR | |
CLAA057VA02CW LCD Screen Pre-Order Information :
Model Compatibility: It is crucial to confirm that your machine model is compatible with this LCD screen. If you are unsure about the compatibility, please contact us for assistance. We are here to help you verify and ensure that you are ordering the correct screen for your device.
Contact Information: To avoid any delivery issues, please double-check and confirm your phone number, address, and zip code before placing your order. Accurate contact information is essential for timely and successful delivery.
By following these steps, you can help ensure that your order process is efficient and that the product you receive is exactly what you need. If you have any questions or need further clarification, our customer service team is available to assist you.
CLAA057VA02CW LCD Panel Shipping and Package :
CLAA057VA02CW LCD Screen Shipping Information :
Prompt Shipping: After receiving your order, we will process and ship it as soon as possible. We aim to dispatch your item quickly to minimize any waiting time.
Logistics Options: Within the scope of available options, we will choose the safest and fastest logistics method to deliver your order. Our goal is to ensure that your LCD screen arrives in excellent condition and in a timely manner.
Specified Logistics: If you have a preferred logistics provider or specific shipping requirements, please inform us in advance. We will do our best to accommodate your request and ensure that your shipping preferences are met.
CLAA057VA02CW LCD Screen Service :
Customer Satisfaction: Your satisfaction is our priority. If you are not completely satisfied with your purchase, please contact us within 30 days of receiving the item. We are committed to resolving any issues you may have.
Return Process: Should you decide to return the product, it is important to contact us before shipping it back. Our team will provide you with detailed instructions on how to properly return the item to ensure a smooth and hassle-free process.
Refund Policy: Once we receive the returned item, we will promptly process a full refund. We aim to make the refund process as efficient as possible, ensuring that you receive your money back without unnecessary delays.
CLAA057VA02CW LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of CLAA057VA02CW ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of CLAA057VA02CW ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods CLAA057VA02CW ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of CLAA057VA02CW ?
A: We accept T/T , Paypal , western union .
