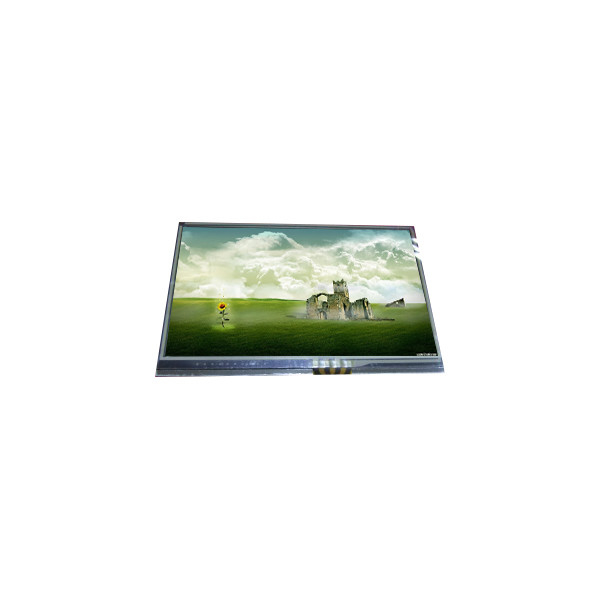

hot sell 10.4 inch TS104SAATC01-00 800*600 TFT LCD PANEL

Brand Name:	TIANMA
Model Number:	TS104SAATC01-00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TS104SAATC01-00

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600 [SVGA] 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(H)×158.4(V) Mm

Signal System:

TTL (1 Ch, 6-bit), 60 PinsFPC

Number Of Color:

262K 50% NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

hot sell 10.4 inch TS104SAATC01-00 800*600 TFT LCD PANEL

TS104SAATC01-00 LCD Panel Product details :

Brand	TIANMA
Model P/N	TS104SAATC01-00
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	800(RGB)×600, SVGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	215.0(W)×162.0(H) mm
Outline Dim.	236(H)×176.9(V)×5.9(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	230 cd/m² (Typ.)
Contrast Ratio	400:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	10/15 (Typ.)(Tr/Td)
Viewing Angle	65/65/45/65 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 50%NTSC
Light Source	CCFL [1 pcs], W/O Driver
Weight	283g (Typ.)
Designed For	Industrial
Frame Rate	-
Touch Panel	Without
Interface Type	TTL (1 ch, 6-bit), 60 pinsFPC
Power Supply	3.3/9.8/22.0/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
hot sell 10.4 inch TS104SAATC01-00 800*600 TFT LCD PANEL

TS104SAATC01-00 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

TS104SAATC01-00 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

TS104SAATC01-00 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

TS104SAATC01-00 LCD Panel Shipping and Package :

hot sell 10.4 inch TS104SAATC01-00 800*600 TFT LCD PANEL 0

TS104SAATC01-00 LCD Panel FAQ :

Q: How long is the warranty of TS104SAATC01-00 ?

A: NEW Product warranty is 90 days.

Q: How to order lcd panel TS104SAATC01-00 ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.
