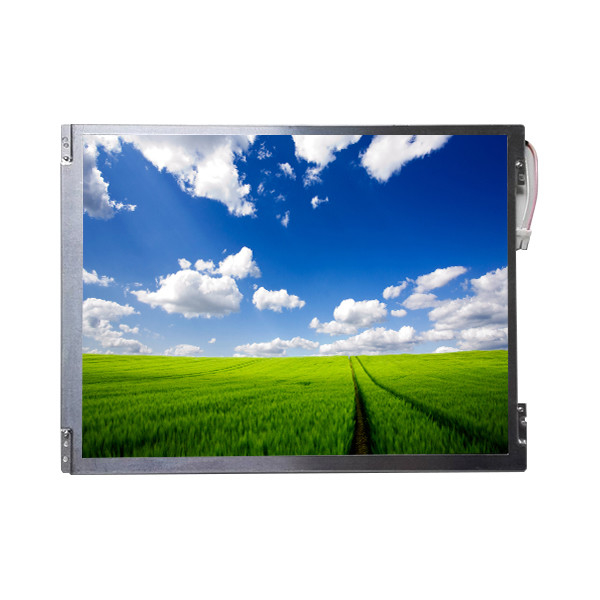

TS104SAALC01-00 10.4 inch 800*600 TFT LCD PANEL LCD Screen

Brand Name:	TIANMA
Model Number:	TS104SAALC01-00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TS104SAALC01-00

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600 [SVGA] 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(H)×158.4(V) Mm

Signal System:

LVDS (1 Ch, 6-bit) , 20 Pins Connector

Number Of Color:

262K 50% NTSC

Supply Ability:

100000 Unit/Units per Month

Product Description

TS104SAALC01-00 10.4 inch 800*600 TFT LCD PANEL LCD Screen

TS104SAALC01-00 LCD Panel Product details :

TIANMA LCD SCREEN TS104SAALC01-00
manufacturer	TIANMA
Model Name	TS104SAALC01-00
screen size	10.4 inch
Screen type	a-Si TFT-LCD , LCM
Resolution	800(RGB)×600 [SVGA] 96PPI
Pixel configuration	RGB Vertical Stripe
Display size	211.2(H)×158.4(V) mm
physical dimension	236(H)×176.9(V) ×5.9(D) mm
Visual size	215.0(H)×162.0(V) mm
surface treatment	Antiglare, Hard coating (3H)
Brightness	230 cd/m² (Typ.)
Contrast	400:1 (Typ.) (TM)
Optical mode	TN, Normally White, Transmissive
Viewing angle	70/70/60/70 (Typ.)(CR≥10)
Responding time	10 (Typ.)(TTr+Td)
Number of color	262K 50% NTSC
Backlight type	CCFL [1 pcs] , W/O Driver
Panel weight	288g (Typ.)
signal system	LVDS (1 ch, 6-bit) , 20 pins Connector
Supply voltage	3.3V (Typ.)
Maximum rating	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
TS104SAALC01-00 10.4 inch 800*600 TFT LCD PANEL LCD Screen

TS104SAALC01-00 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

TS104SAALC01-00 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

TS104SAALC01-00 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

TS104SAALC01-00 LCD Panel Shipping and Package :

TS104SAALC01-00 10.4 inch 800*600 TFT LCD PANEL LCD Screen 0

TS104SAALC01-00 LCD Panel FAQ :

Q: How to order lcd panel TS104SAALC01-00 ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of TS104SAALC01-00 ?

A: NEW Product warranty is 90 days.
