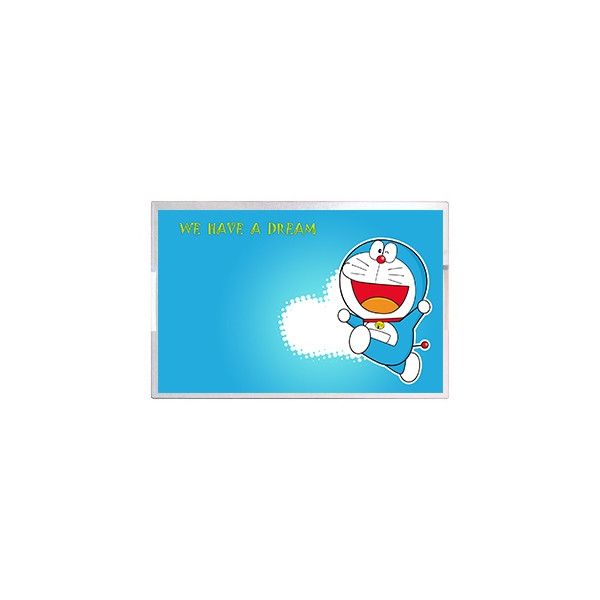

TMT057DNAFWU 5.7 inch 54 pins LCD Display LCD Monitor

Brand Name:	TIANMA
Model Number:	TMT057DNAFWU
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TMT057DNAFWU

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

320(RGB)×240, QVGA 70PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

115.2(W)×86.4(H) Mm

Designed For:

Industrial

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

TMT057DNAFWU 5.7 inch 54 pins LCD Display LCD Monitor

TMT057DNAFWU LCD Panel Product details :

Brand	TIANMA
Model P/N	TMT057DNAFWU
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320(RGB)×240, QVGA 70PPI
Pixel Format	RGB Vertical Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	-
Outline (mm)	126.08×101.54×6.55 (H×V×D)
Treatment	Antiglare
Luminance	250 cd/m² (Typ.)
Contrast Ratio	250 : 1 (Typ.) (TM)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Response	10/35 (Typ.)(Tr/Td) ms
Good View at	12 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	16.7M 50%NTSC
Backlight	2 stringsWLED, 20K hours, No Driver
Mass	-
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 8-bit), FPC54 pins
Voltage Supply	3.3/5.0/15/-10V (Typ.)(VCC/VDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
TMT057DNAFWU 5.7 inch 54 pins LCD Display LCD Monitor

TMT057DNAFWU LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

TMT057DNAFWU LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

TMT057DNAFWU LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

TMT057DNAFWU LCD Panel Shipping and Package :

TMT057DNAFWU 5.7 inch 54 pins LCD Display LCD Monitor 0

TMT057DNAFWU LCD Panel FAQ :

Q: What does "We may ship a 100% compatible part number for your screen" mean?

A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen.

Q: How long is the warranty of TMT057DNAFWU ?

A: NEW Product warranty is 90 days.

Q: How to order lcd panel TMT057DNAFWU ?

A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
