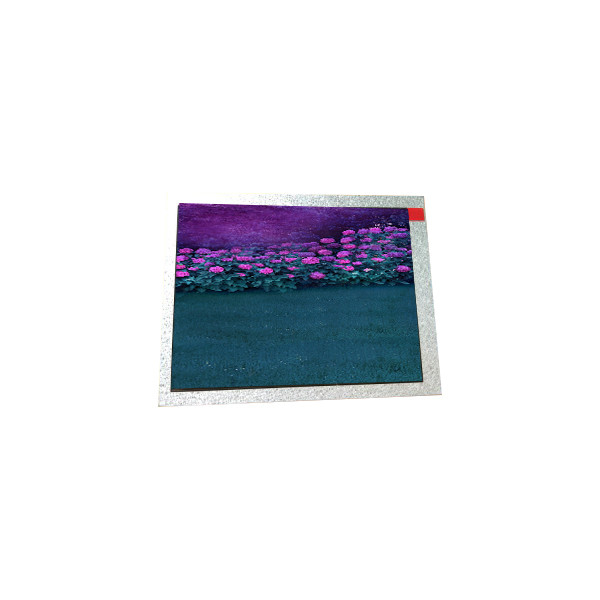

TM156VDHP01 15.6 inch 1920*1080 LVDS 16.7M TFT LCD screen Display

Brand Name:	TIANMA
Model Number:	TM156VDHP01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM156VDHP01

Diagonal Size:

15.6"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×1080, FHD 141PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

344.16(W)×193.59(H) Mm

Used For:

Industrial

Touchscreen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

TM156VDHP01 15.6 inch 1920*1080 LVDS 16.7M TFT LCD screen Display

TM156VDHP01 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM156VDHP01
Diagonal Size	15.6"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×1080, FHD 141PPI
Pixel Format	RGB Vertical Stripe
Active Area	344.16(W)×193.59(H) mm
Bezel Opening	347.55(W)×196.75(H) mm
Outline(mm)	363.8 × 215.9 (H×V×D)
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Response	12/13 (Typ.)(Tr/Td) ms
Good View at	Symmetry
Work Mode	SFT, Normally Black, Transmissive
Color Depth	16.7M 72%NTSC
Backlight	WLED, With LED Driver
Mass	610g (Typ.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (2 ch, 8-bit), 30 pinsConnector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 70 °C
TM156VDHP01 15.6 inch 1920*1080 LVDS 16.7M TFT LCD screen Display

TM156VDHP01 LCD Display About Us :

Experience: We have over 15 years of experience in the industry, successfully serving more than 10,000 clients across 100 countries.

Product Range: We offer a wide variety of LCD panels and touch screens, acting as an agent for several renowned LCD brands including Kyocera, KOE, and Nanya. Our inventory frequently includes products from Sharp, NEC, Hitachi, AUO, Kyocera, and KOE, which can often be shipped within one day.

Quality and Pricing: We pride ourselves on providing high-quality products at competitive prices. Our goal is to meet your demands with the best products and services available.

TM156VDHP01 LCD Display Product Details :

Condition:

Before shipment, each unit undergoes multiple tests to ensure perfect functionality. We guarantee 100% quality for our products.

Order Guidance:

If you are uncertain whether this is the correct item for your needs, or if you require a larger quantity, please contact us before placing your order.

Product Authenticity:

The LCD screens are original and are thoroughly tested before being sent to you.

TM156VDHP01 LCD Display Friendly Reminder :

- Installation Guide:

- An installation guide is not included with the product. We are not responsible for any damage caused by the installation of this accessory. Please ensure you are knowledgeable about the installation process before purchasing.

- Professional Installation Recommended:

- Proper installation requires special skills and techniques. We recommend seeking the assistance of a qualified technician to carry out the repair.

- Disassembly Knowledge:

- Make sure you understand the disassembly procedure before making a purchase.

- Return Policy:

- Returns are only accepted if the item is in its original condition. We strongly recommend testing the item before installation.

TM156VDHP01 LCD Panel Shipping and Package :

TM156VDHP01 15.6 inch 1920*1080 LVDS 16.7M TFT LCD screen Display 0

TM156VDHP01 LCD Panel FAQ :

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: How long will I receive my goods TM156VDHP01 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q:If I place order now,when will you ship the goods of TM156VDHP01 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q:Do you accept sample orders of TM156VDHP01 ?

A:Of course!sample order is welcome !
