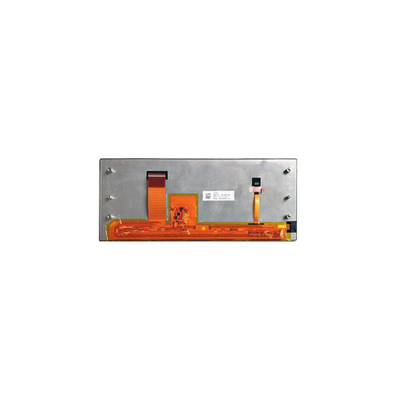

1920*720 TM123XDHP90-00 12.3 inch lcd screen for Outdoor High Brightness

All Category

Floor Standing Digital Signage

1920*720 TM123XDHP90-00 12.3 inch lcd screen for Outdoor High Brightness

Brand Name:	TIANMA
Model Number:	TM123XDHP90-00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM123XDHP90-00

Diagonal Size:

12.3"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1920(RGB)×720 166PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

292.32(W)×109.62(H) Mm

Designed For:

Industrial、Outdoor High Brightness、Automotive Display

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

1920*720 TM123XDHP90-00 12.3 inch lcd screen for Outdoor High Brightness

TM123XDHP90-00 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM123XDHP90-00
Diagonal Size	12.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×720 166PPI
Pixel Format	RGB Vertical Stripe
Active Area	292.32(W)×109.62(H) mm
Bezel Opening	-
Outline Size	311(W)×130(H)×15.7(D) mm
Surface	Antiglare (Haze 28%)
Brightness	1000 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	-
Display Mode	SFT, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	16.7M 98%sRGB
Lamp Type	10S4PWLED, 10K hours, Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	490g (Typ.)
Application	Industrial,Outdoor High Brightness,Automotive Display
Signal Interface	LVDS (2 ch, 8-bit), 50 pins FPC
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -40 ~ 85 °C ;Storage Temp.: -40 ~ 95 °C; Vibration Level: 3.0G (29.4 m/s²)
1920*720 TM123XDHP90-00 12.3 inch lcd screen for Outdoor High Brightness

TM123XDHP90-00 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

TM123XDHP90-00 LCD Panel Shipping and Package :

1920*720 TM123XDHP90-00 12.3 inch lcd screen for Outdoor High Brightness 0

TM123XDHP90-00 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

TM123XDHP90-00 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

TM123XDHP90-00 LCD Panel FAQ :

Q: Do you accept sample orders of TM123XDHP90-00 ?

A: Of course!sample order is welcome !

Q: Can you give me a discount if I need a large quantity of TM123XDHP90-00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can I pay my order of TM123XDHP90-00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long will I receive my goods TM123XDHP90-00 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
