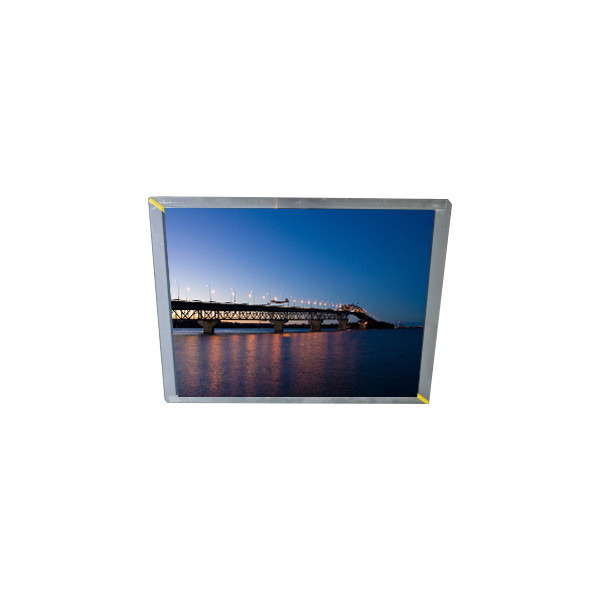

TM104TDHP01 10.4 inch 1024*768 60Hz 20 pins lcd screen display

Brand Name:	TIANMA
Model Number:	TM104TDHP01
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM104TDHP01

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768 (XGA) 123PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

210.432 × 157.824 (H×V)

Designed For:

Industrial

Touch Panel:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

TM104TDHP01 10.4 inch 1024*768 60Hz 20 pins lcd screen display

TM104TDHP10 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM104TDHP01
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 123PPI
Pixel Format	RGB Vertical Stripe
Active Area	210.432(W)×157.824(H) mm
Bezel Opening	213.4(W)×160.8(H) mm
Outline Dim.	235(H)×177(V)×10.5(D)mm
Treatment	Antiglare
Luminance	500 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	13/12 (Typ.)(Tr/Td)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Operating Mode	SFT, Normally Black, Transmissive
Support Color	16.7M 70%NTSC
Light Source	WLED [6S4P], 30K hours, W/O Driver
Weight	TBD
Designed For	Industrial
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 8-bit), 20 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -40 ~ 80 °C
TM104TDHP01 10.4 inch 1024*768 60Hz 20 pins lcd screen display

TM104TDHP10 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

TM104TDHP10 LCD Panel Shipping and Package :

TM104TDHP01 10.4 inch 1024*768 60Hz 20 pins lcd screen display 0

TM104TDHP10 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

TM104TDHP10 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

TM104TDHP10 LCD Panel FAQ :

Q: Why big order delivery time are long?

A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!

Q: Are you manufactory or trade company?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can you declared low value for my order when shipping?

A: Yes, We can do it for you if you need.

Q: How to do if I can't find the screen that I require in your listings?

A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
