Industrial LCD Panel Display

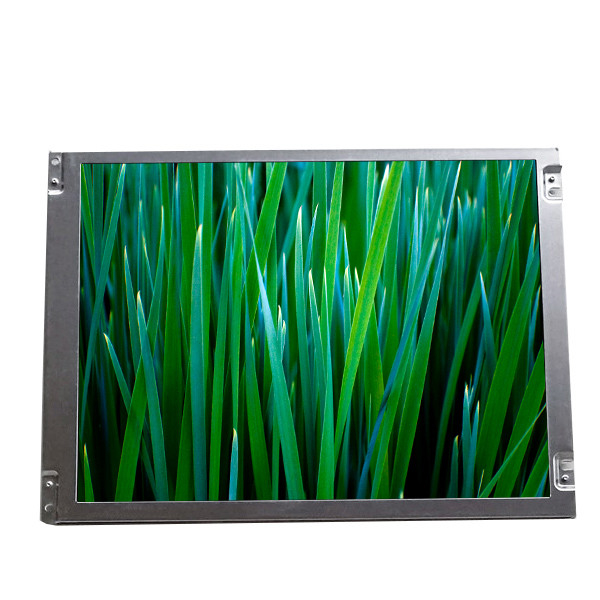

TM104SDH03 10.4 inch 20pins lvds lcd display for Industrial

All Category

Floor Standing Digital Signage

TM104SDH03 10.4 inch 20pins lvds lcd display for Industrial

Brand Name:	TIANMA
Model Number:	TM104SDH03
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM104SDH03

Diagonal Size:

10.4"

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

800(RGB)×600, SVGA 96PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

211.2(W)×158.4(H) Mm

Signal Type:

LVDS (1 Ch, 6/8-bit) , 20 Pins Connector

Backlight:

5S8P WLED , 50K Hours , With LED Driver

Supply Ability:

100000 Unit/Units per Month

Product Description

TM104SDH03 10.4 inch 20pins lvds lcd display for Industrial

TM104SDH03 LCD Panel Product details :

TIANMA LCD SCREEN TM104SDH03
Manufacturer	TIANMA
Model Name	TM104SDH03
Screen Size	10.4 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	800(RGB)×600 (SVGA) 96PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	211.2 × 158.4 (H×V)
Outline(mm)	243 × 179.4 × 8.5 (H×V×D)
Bezel Area(mm)	214.8 × 161.8 (H×V)
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Response	10/15 (Typ.)(Tr/Td) ms
Good View at	12 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K/16.2M 50% NTSC
Backlight	5S8P WLED , 50K hours , With LED Driver
Mass	433g (Typ.)
Used for	Industrial
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 80 °C
TM104SDH03 10.4 inch 20pins lvds lcd display for Industrial

TM104SDH03 LCD Panel Shipment :

· We're not responsible for any accidents delays or other issues that are the resposibility of the shipping service.But we will help you to track the package until you get.

· Please make sure to double check your address before completing your payment.

· An email will be sent as package is process for shipment .We will provide tracking number for you to check the package online.

· Customers are responsible for customs taxes and duties where applicable.

· Any import charges or fees are the buyer's responsibility. If the package can't be delivered because of the buyers reason(including refusing to sign), buyer should afford all the extra cost!

TM104SDH03 LCD Panel Shipping and Package :

TM104SDH03 10.4 inch 20pins lvds lcd display for Industrial 0

TM104SDH03 LCD Panel Shipment Information :

Shipment Policies

Responsibility for Delays and Issues: While we are committed to helping you track your package, please note that we are not responsible for any accidents, delays, or other issues that are the responsibility of the shipping service. We will, however, assist you in tracking your package until it reaches you.

Address Verification: It is crucial to double-check your shipping address before completing your payment. Ensuring that the address is accurate helps prevent delivery issues and delays.

Shipping Notification: Once your package is processed for shipment, you will receive an email notification. This email will include the tracking number, which you can use to monitor your package's status online.

Customs Taxes and Duties: Customers are responsible for any customs taxes and duties applicable in their country. Please be aware of your local regulations regarding import charges to avoid unexpected fees.

Import Charges: Any additional import charges or fees imposed by your country are the buyer's responsibility. If a package cannot be delivered due to reasons attributable to the buyer (such as refusal to sign for the package), the buyer will be responsible for any additional costs incurred.

TM104SDH03 LCD Panel Return and Warranty Information :

Return Policy

Inspection and Exchange: All goods undergo two inspections before shipment to guarantee quality. If you are not satisfied with your purchase, you may exchange the item within one week. To initiate an exchange, please contact us within 24 hours of receiving your purchase.

Condition of Return Items: Items must be returned in their original condition, including the box and all accessories. Items showing signs of man-made defects, such as breakage or scratches, are not eligible for return or exchange.

Return Shipping: For returning any items, please use EMS (Express Mail Service) or your local postal service to send the item back to us.

Warranty Policy

Warranty Duration: All items come with a six-month warranty, covering any issues not caused by human error or damage. If your item has a defect not caused by man-made problems, we will replace it for you free of charge.

Best After-Sale Service: We pride ourselves on providing excellent after-sale service. Should any problems arise, we are dedicated to resolving them to ensure customer satisfaction.

TM104SDH03 LCD Panel FAQ :

Q: How long will I receive my goods TM104SDH03 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q:Can You declare my order of TM104SDH03 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q:Can I pay my order of TM104SDH03 via credit card ?

A:Yes!you can use your credit card through your Paypal account.
