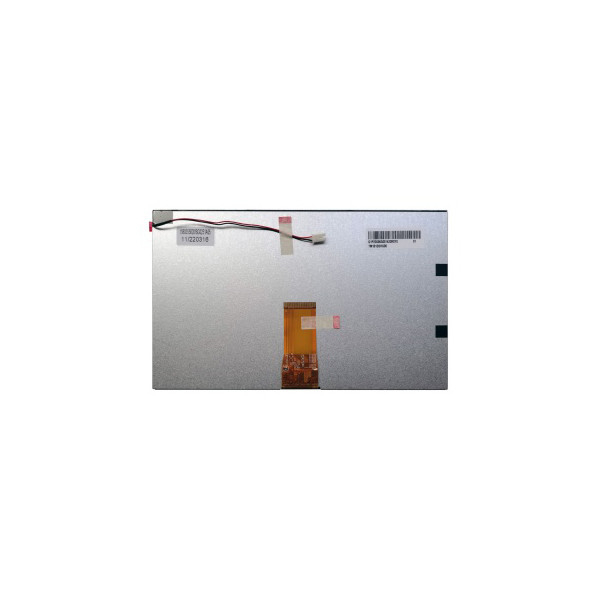

hot sell 10.1 inch 1024*600 TM101DDHG06-01 TFT-LCD Screen Display
Product Details:
Place of Origin: | China |
Brand Name: | TIANMA |
Model Number: | TM101DDHG06-01 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model Name: | TM101DDHG06-01 | Diagonal Size: | 10.1" |
---|---|---|---|
Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1024(RGB)×600 (WSVGA) 117PPI |
Pixel Format: | RGB Vertical Stripe | Active Area: | 222.72 × 125.28 (H×V) |
Used For: | Industrial | Refresh Rate: | 60Hz |
Product Description
hot sell 10.1 inch 1024*600 TM101DDHG06-01 TFT-LCD Screen Display
TM101DDHG06-01 LCD Panel Product details :
Brand | TIANMA |
Model P/N | TM101DDHG06-01 |
Diagonal Size | 10.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1024(RGB)×600, WSVGA 117PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 222.72(W)×125.28(H) mm |
Bezel Opening | 225.72(W)×128.28(H) mm |
Outline Size | 235(W)×143(H)×5.5(D) mm |
Treatment | Antiglare |
Luminance | 350 cd/m² (Typ.) |
Contrast Ratio | 500 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/75/80 (Typ.)(CR≥10) |
Response | 7/9 (Typ.)(Tr/Td) ms |
Good View at | 12 o'clock |
Work Mode | TN, Normally White, Transmissive |
Color Depth | 262K/16.7M 47%NTSC |
Backlight | 3S8PWLED, 30K hours, No Driver |
Mass | 272.3g (Typ.) |
Used for | Industrial |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | TTL (1 ch, 6/8-bit), 50 pinsFPC |
Voltage Supply | 3.3/11/22/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
hot sell 10.1 inch 1024*600 TM101DDHG06-01 TFT-LCD Screen Display |
TM101DDHG06-01 LCD Panel Shipping and Package :
TM101DDHG06-01 LCD Panel FAQ :
Q: Can I pay my order of TM101DDHG06-01 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of TM101DDHG06-01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TM101DDHG06-01 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
