Brand Name: | TIANMA |
Model Number: | TM101DDHG06-00 |
MOQ: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Payment Terms: | T/T, Western Union |

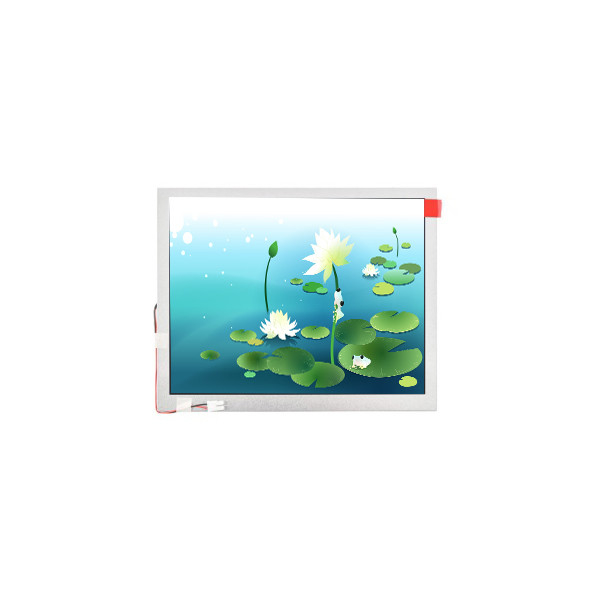

High Quality 10.1 inch TM101DDHG06-00 1024*600 TFT-LCD Screen Panel
TM101DDHG06-00 LCD Panel Product details :
Brand | TIANMA |
Model P/N | TM101DDHG06-00 |
Diagonal Size | 10.1" |
Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1024(RGB)×600, WSVGA 117PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 222.72(W)×125.28(H) mm |
Bezel Opening | 225.72(W)×128.28(H) mm |
Outline Size | 235(W)×143(H)×5.5(D) mm |
Brightness | 350 cd/m² (Typ.) |
Viewing Angle | 75/75/60/60 (Typ.)(CR≥10) |
Best View on | 12 o'clock |
Display Colors | 262K/16.7M 47%NTSC |
Frequency | 60Hz |
Weight | 272g (Typ.) |
Surface | Antiglare, Hard coating (3H) |
Contrast Ratio | 500:1 (Typ.) (TM) |
Display Mode | TN, Normally White, Transmissive |
Response Time | 7/9 (Typ.)(Tr/Td) |
Lamp Type | 3S8P WLED , 30K hours , Without Driver |
Touch Screen | Without |
Application | Industrial |
Signal Interface | TTL (1 ch, 6/8-bit), 50 pinsFPC |
Input Voltage | 3.3/11/22/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
High Quality 10.1 inch TM101DDHG06-00 1024*600 TFT-LCD Screen Panel |
TM101DDHG06-00 LCD Panel Shipping and Package :
TM101DDHG06-00 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of TM101DDHG06-00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TM101DDHG06-00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can I pay my order of TM101DDHG06-00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
