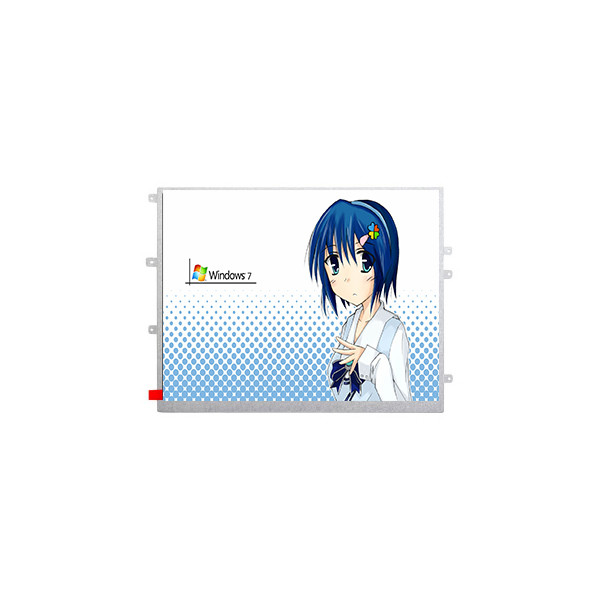

in stock 9.7 inch TM097TDHG04-66 LVDS TFT-LCD screen display

Brand Name:	TIANMA
Model Number:	TM097TDHG04-66
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM097TDHG04-66

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 132PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

196.608(W)×147.456(H) Mm

Used For:

Pad & Tablet、Industrial

Refresh Rate:

Supply Ability:

100000 Unit/Units per Month

Product Description

in stock 9.7 inch TM097TDHG04-66 LVDS TFT-LCD screen display

TM097TDHG04-66 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM097TDHG04-66
Diagonal Size	9.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 132PPI
Pixel Format	RGB Vertical Stripe
Active Area	196.608(W)×147.456(H) mm
Bezel Opening	200.91(W)×152.27(H) mm
Outline Dim.	210.2(H)×166.3(V)×5.85(D)mm
Treatment	Clear
Luminance	350 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
View Direction	12 o'clock
Response Time	20/25 (Typ./Max.)(Tr+Td)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 50%NTSC
Light Source	WLED [6S6P], 30K hours, W/O Driver
Weight	200g (Typ.)
Designed For	Pad & Tablet,Industrial
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6-bit), 30 pinsConnector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
