TM080TDHG01-42 8.0 inch 1024*768 40 pins LVDS lcd display module

Brand Name:	TIANMA
Model Number:	TM080TDHG01-42
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM080TDHG01-42

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 160PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

162.048(W)×121.536(H) Mm

Backlight:

3S9P WLED , 30K Hours , No Driver

Signal Type:

LVDS (1 Ch, 6/8-bit) , 40 Pins FPC

Supply Ability:

100000 Unit/Units per Month

Product Description

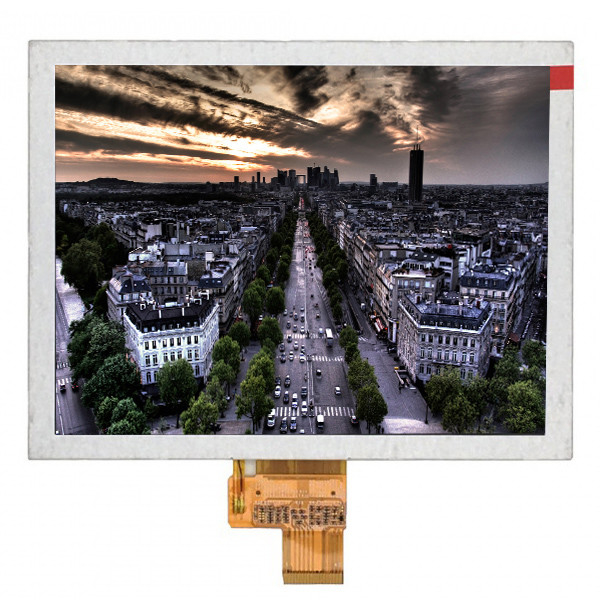

TM080TDHG01-42 8.0 inch 1024*768 40 pins LVDS lcd display module

TM080TDHG01-42 LCD Panel Product details :

TIANMA LCD SCREEN TM080TDHG01-42
Manufacturer	TIANMA
Model Name	TM080TDHG01-42
Screen Size	8.0 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	1024(RGB)×768 (XGA) 160PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	162.048 × 121.536 (H×V)
Outline(mm)	183 × 141 × 3.7 (H×V×D)
Bezel Area(mm)	164.65 × 124.14 (H×V)
Treatment	Clear
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response	20 (Typ.)(Tr+Td) ms
Work Mode	TN, Normally White, Transmissive
Backlight	3S9P WLED , 30K hours , No Driver
Mass	189g
Signal Type	LVDS (1 ch, 6/8-bit) , 40 pins FPC
Voltage Supply	3.3/12.6/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
TM080TDHG01-42 8.0 inch 1024*768 40 pins LVDS lcd display module

TM080TDHG01-42 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

TM080TDHG01-42 LCD Panel Shipping and Package :

TM080TDHG01-42 8.0 inch 1024*768 40 pins LVDS lcd display module 0

TM080TDHG01-42 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

TM080TDHG01-42 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

TM080TDHG01-42 LCD Panel FAQ :

Q: Can you give me a discount if I need a large quantity of TM080TDHG01-42 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Can You declare my order of TM080TDHG01-42 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: Can I pay my order of TM080TDHG01-42 via credit card ?

A: Yes!you can use your credit card through your Paypal account.
