Industrial LCD Panel Display

TM080TDGP02-00 1024*768 8.0 inch 1800 : 1 LCD Panel SCREEN

All Category

Floor Standing Digital Signage

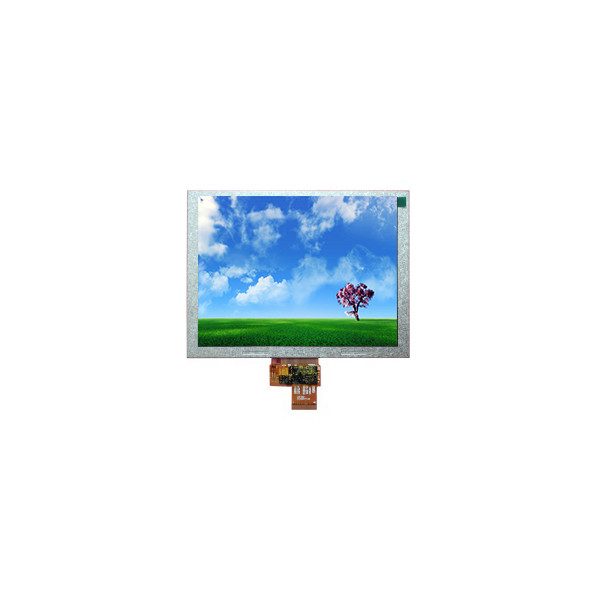

TM080TDGP02-00 1024*768 8.0 inch 1800 : 1 LCD Panel SCREEN

Brand Name:	TIANMA
Model Number:	TM080TDGP02-00
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model Name:

TM080TDGP02-00

Diagonal Size:

Panel Type:

A-Si TFT-LCD, LCM

Resolution:

1024(RGB)×768, XGA 160PPI

Pixel Format:

RGB Vertical Stripe

Active Area:

162.048(W)×121.536(H) Mm

Application:

Industrial

Touch Screen:

Without

Supply Ability:

100000 Unit/Units per Month

Product Description

TM080TDGP02-00 1024*768 8.0 inch 1800 : 1 LCD Panel SCREEN

TM080TDGP02-00 LCD Panel Product details :

Brand	TIANMA
Model P/N	TM080TDGP02-00
Diagonal Size	8.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768, XGA 160PPI
Pixel Format	RGB Vertical Stripe
Active Area	162.048(W)×121.536(H) mm
Bezel Opening	164.65(W)×122.54(H) mm
Outline(mm)	183.43(W)×138.35(H)×4.05(D)
Luminance	450 (Typ.)(cd/m²)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Good View at	Symmetry
Color Depth	16.7M 50% NTSC
Mass	TBD
Refresh Rate	60Hz
Treatment	Antiglare
Contrast Ratio	1800 : 1 (Typ.) (TM)
Work Mode	SFT, Normally Black, Transmissive
Response	35 (Typ.)(Tr+Td) ms
Backlight	3S9P WLED , 30K hours , No Driver
Used for	Industrial
Touchscreen	Without
Signal Type	LVDS (1 ch, 8-bit), 40 pins FPC
Voltage Supply	3.3/12.6/23/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Max. Ratings	Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
TM080TDGP02-00 1024*768 8.0 inch 1800 : 1 LCD Panel SCREEN

TM080TDGP02-00 LCD Panel Note :

Model Verification:

Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.

Comprehensive Testing:

We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.

TM080TDGP02-00 LCD Panel Shipping and Package :

TM080TDGP02-00 1024*768 8.0 inch 1800 : 1 LCD Panel SCREEN 0

TM080TDGP02-00 LCD Panel Shipping Guidelines:

Address Confirmation:

It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.

Shipment Timeline:

Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.

TM080TDGP02-00 LCD Panel ESTIMATED DELIVERY TIME :

Standard Shipping:

The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.

Expedited Shipping:

For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.

TM080TDGP02-00 LCD Panel FAQ :

Q: Can I pay my order of TM080TDGP02-00 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Can You declare my order of TM080TDGP02-00 a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of TM080TDGP02-00 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of TM080TDGP02-00 ?

A: Of course!sample order is welcome !
