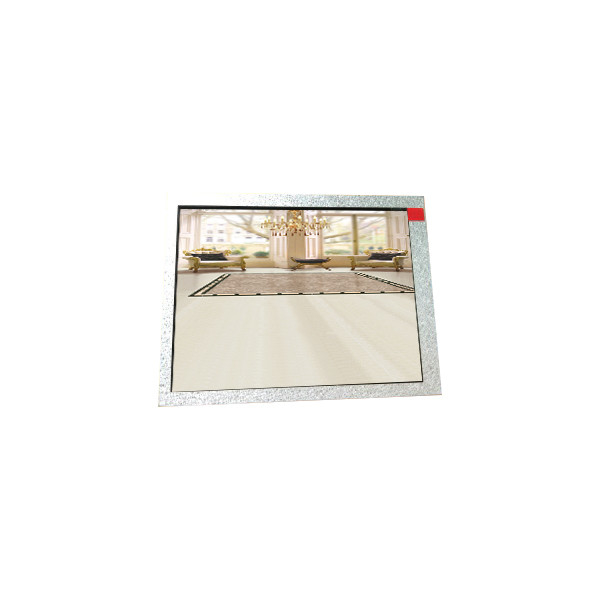

original 1280*720 TM080JDSG01 8.0 inch LVDS lcd display lcd screen
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM080JDSG01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM080JDSG01 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×720, WXGA 183PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 177.024(W)×99.576(H) Mm |
| Application: | Industrial、Automotive Display | Touch Screen: | Without |
Product Description
original 1280*720 TM080JDSG01 8.0 inch LVDS lcd display lcd screen
TM080JDSG01 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM080JDSG01 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 183PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 177.024(W)×99.576(H) mm |
| Bezel Opening | - |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | SFT, Normally Black, Transmissive |
| Support Color | 262K 50%NTSC |
| Light Source | WLED, 20K hours |
| Weight | - |
| Designed For | Industrial,Automotive Display |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6-bit) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| original 1280*720 TM080JDSG01 8.0 inch LVDS lcd display lcd screen | |
TM080JDSG01 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
TM080JDSG01 LCD Panel Shipping and Package :
TM080JDSG01 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
TM080JDSG01 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
TM080JDSG01 LCD Panel FAQ :
Q: If I place order now,when will you ship the goods of TM080JDSG01 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of TM080JDSG01 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long will I receive my goods TM080JDSG01 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of TM080JDSG01 ?
A: We accept T/T , Paypal , western union .
