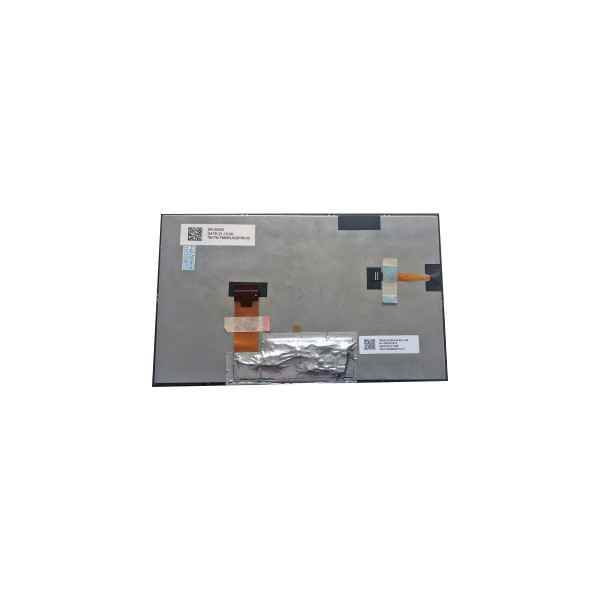

TM080JDGP06-00 1280*720 8.0 inch lcd display lcd for Automotive
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM080JDGP06-00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM080JDGP06-00 | Diagonal Size: | 8.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 1280(RGB)×720, WXGA 184PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 176.64(W)×99.36(H) Mm |
| Application: | Industrial、Outdoor High Brightness、Automotive Display | Touch Screen: | Without |
Product Description
TM080JDGP06-00 1280*720 8.0 inch lcd display lcd for Automotive
TM080JDGP06-00 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM080JDGP06-00 |
| Diagonal Size | 8.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 184PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 176.64(W)×99.36(H) mm |
| Bezel Opening | 179.64(W)×102.21(H) mm |
| Outline(mm) | 192.8(W)×116.9(H)×8.5(D) |
| Luminance | 1200 (Typ.)(cd/m²) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 73% NTSC |
| Mass | 186±9g |
| Refresh Rate | - |
| Treatment | Hard coating |
| Contrast Ratio | 1300 : 1 (Typ.) (TM) |
| Work Mode | SFT, Normally Black, Transmissive |
| Response | 25 (Typ.)(Tr+Td) ms |
| Backlight | 6S3P WLED , 50K hours , No Driver |
| Used for | Industrial,Outdoor High Brightness,Automotive Display |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 8-bit), 30 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
| TM080JDGP06-00 1280*720 8.0 inch lcd display lcd for Automotive | |
TM080JDGP06-00 LCD Panel Shipping and Package :
TM080JDGP06-00 LCD Panel FAQ :
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
