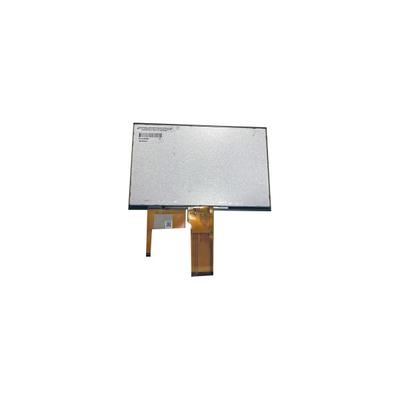

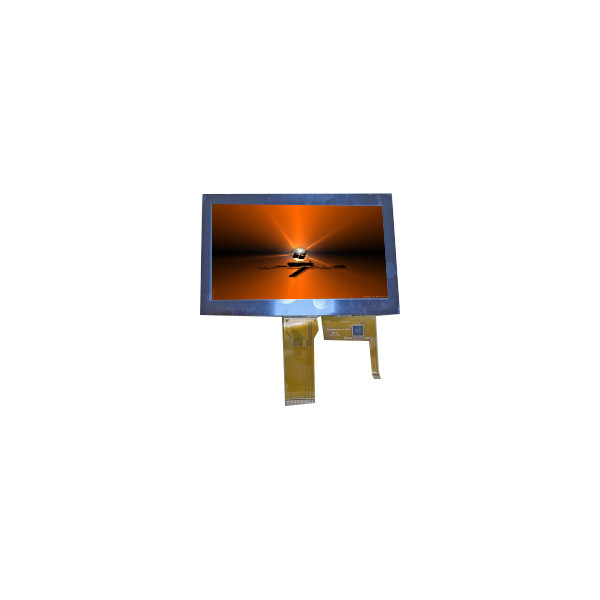

TM070RVHG04 800*480 7.0 inch LCD SCREEN for Outdoor High Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | TIANMA |
| Model Number: | TM070RVHG04 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model Name: | TM070RVHG04 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 800(RGB)×480, WVGA 134PPI |
| Pixel Format: | RGB Vertical Stripe | Active Area: | 154.08(W)×85.92(H) Mm |
| Application: | Industrial、Outdoor High Brightness | Touch Screen: | PCAP, I²C |
Product Description
TM070RVHG04 800*480 7.0 inch LCD SCREEN for Outdoor High Brightness
TM070RVHG04 LCD Panel Product details :
| Brand | TIANMA |
| Model P/N | TM070RVHG04 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 134PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 154.08(W)×85.92(H) mm |
| Bezel Opening | 157.08(W)×89.39(H) mm |
| Outline Size | 171.5(W)×110.3(H)×7.75(D) mm |
| Brightness | 1200 cd/m² (Typ.) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Best View on | 12 o'clock |
| Display Colors | 262K/16.7M 50%NTSC |
| Frequency | 60Hz |
| Weight | 208g (Typ.) |
| Surface | Hard coating (6H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Lamp Type | 6S5P WLED , 50K hours , Without Driver |
| Touch Screen | PCAP, I²C |
| Application | Industrial,Outdoor High Brightness |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit), 50 pinsFPC |
| Input Voltage | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGG/VEE) |
| Environment | Operating Temp.: -20 ~ 70 °C ;Storage Temp.: -30 ~ 80 °C |
| TM070RVHG04 800*480 7.0 inch LCD SCREEN for Outdoor High Brightness | |
TM070RVHG04 LCD Panel Note :
Model Verification:
Please ensure that the model number you need is exactly the same as the model number you have ordered. We will ship the LCD panel based strictly on the model specified in your order. Ensuring the correct model number is crucial to avoid any compatibility issues.
Comprehensive Testing:
We conduct 100% testing on each LCD panel to ensure it meets our stringent quality standards. This thorough testing process guarantees that you receive a fully functional and reliable product. Our commitment to quality ensures that each panel is meticulously checked before it is shipped to you.
TM070RVHG04 LCD Panel Shipping and Package :
TM070RVHG04 LCD Panel Shipping Guidelines:
Address Confirmation:
It is crucial to verify that the shipping address provided in your order is accurate. We will ship the LCD panel to the address listed in the order. If you need the panel to be shipped to a different address, please email us the new address immediately after making the payment to avoid any shipping errors.
Shipment Timeline:
Your order will be processed and shipped within three business days after we have received your payment. Please note that business days do not include weekends or public holidays, so take this into account when estimating your delivery date.
TM070RVHG04 LCD Panel ESTIMATED DELIVERY TIME :
Standard Shipping:
The estimated delivery time for standard shipping is between 10 to 35 working days. This timeframe may vary depending on the destination and other factors such as customs processing and local postal services.
Expedited Shipping:
For a faster delivery option, expedited shipping is available with an estimated delivery time of 4 to 7 working days. This option is ideal if you need the LCD panel urgently and prefer a quicker shipping method.
TM070RVHG04 LCD Panel FAQ :
Q: Can you give me a discount if I need a large quantity of TM070RVHG04 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TM070RVHG04 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods TM070RVHG04 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
